ZIPPIE IRIS Wheelchair
Cutting-edge rotation-in-space technology designed just for kids. The ZIPPIE® IRIS™ uses patented rotation-in-space technology for smooth and controlled tilting, the shortest possible wheelbase, and an extremely low weight while providing superior positioning capabilities and caregiver options.
40° or 55° of Intelligent Rotation in Space Technology
Optional XLOCK® Folding Crossbrace
Accessories for Caregiver Convenience
Growth Capabilities
Other Assets
| Back Height | 16" to 22" (40.6 cm to 55.9 cm) Fixed: 19", 22", 25" (48.3 cm, 55.9 cm, 63.5 cm) Reclining: 21", 24" (53.3 cm, 61 cm) |
| Anti-Tips | Rear |
| Armrests | Adjustable Locking Flip-up Dual Post Flip Back Height Adjustable Dual Post Flip Back Dual Post Height Adjustable Dual Post Flip-up Length Adjustable Locking Flip-Up Single Post Height Adjustable T-Post |
| Axle | One Arm Drive Quad Quick Release Quick Release |
| Back Upholstery | N/A |
| Caster Wheels | 4" (10.2 cm) Micro Lighted 4" x 1.25" (10.2 cm x 3.2 cm) Semi-Pneu 5" (12.7 cm) Low-Profile Poly 5" (12.7 cm) Micro lighted 5" x 1.5" (12.7 cm x 3.8 cm) Semi-Pneu 6" (15.2 cm) Pneumatic 6" (15.2 cm) Poly 6" x 1.5" (15.2 cm x 3.8 cm) Semi-Pneu 8" (20.3 cm) Pneumatic 8" (20.3 cm) Poly 8" x 1.5" (20.3 cm x 3.8 cm) Semi-Pneu 8" x 2" (20.3 cm x 5.1 cm) Pneumatic 8" x 2"(20.3 cm x 5.1 cm) Pneumatic w/Airless Insert |
| Chair Weight | 20 lbs. (9.1 kg) |
| Footplates | Aluminum Angle Adjustable Aluminum Composite Footboard Kids Angle Adjustable Platform Flip-up |
| Frame Material | Aluminum |
| Frame Style | Rigid |
| Handrims | Aluminum Anodized Plastic Coated |
| Overall Chair Width | 17.5" to 25.5" (44.5 cm to 64.8 cm) |
| Seat Depths | 10" to 18" (25.4 cm to 45.7 cm) |
| Seat Widths | 10" to 18" (25.4 cm to 45.7 cm) |
| User Weight Capacity | 165 lbs. (74.8 kg) |
| Accessories | Black Spoke Guard Clear Spoke Guard Seat Pouch Tool Kit Upper Extremity Support Tray (XS, S, M, L) Utility Backpack |
| Arm Pads | Classic Contour Foam |
| Average Shipping Weight | 90 lbs. and 15 lbs. (40.8 kg and 6.8 kg) |
| Backrest Type | Fixed Height Adjustable Reclining |
| Shipping Dimensions | 20" x 20" x 10" (50.8 cm x 50.8 cm x 25.4 cm) 36" x 37" x 28" (91.4 cm x 94 cm x 71.1 cm) |
| Transit Approved | Reference Owner's Manual for Complete Details Transit Approved for Occupant |
| Wheel Locks | 6" (15.2 cm) Extension Handle Option High Mount Push |
| Angle Adjustable Backrest | -30° to 5° |
| Anodized Color Options | N/A |
| Axle Plate | One Arm Drive Standard |
| Back Post Options | Angle Adjustable |
| Backrest Options | Folding Adjustable Rigidizer |
| Camber | N/A |
| Caster Options | N/A |
| Footplate Options | Extension Tubes (Short, Medium, Long, High Mount) Heel Loops Leg Strap Neoprene Covers Toe Loops |
| Frame Angle | N/A |
| Frame Color Options | Candy Blue |
| Frame Inset | N/A |
| Frame Type | Contracture Standard |
| Front Seat-to-Floor Height | 12.5" to 19" (31.8 cm to 48.3 cm) |
| Hangers | 60° Swing In/Out 70° Heavy Duty Front Mount Lift-Off 70° Swing In/Out Front Mount 70° Swing In/Out 80° Heavy Duty Front Mount Lift-Off 80° Swing In/Out Front Mount 80° Swing In/Out 90° Elevating 90° Heavy Duty Front Mount Lift-Off 90° Swing In/Out Front Mount Articulating Contracture Elevating |
| Hub Lock | 12" (30.5 cm) or 16" (40.6 cm) |
| Model Number | EIZ5A |
| Rear Seat-to-Floor Height | 12.5" to 19" (31.8 cm to 48.3 cm) |
| Rear Wheel Tire | Full Poly Low Poly Pneumatic with Airless Insert Pneumatic |
| Rear Wheel Type | 12" (30.5 cm) Mag 16" (40.6 cm) Mag 20" (50.1 cm) Mag 20" (50.8 cm) Lite Spoke 22" (55.9 cm) Lite Spoke 22" (55.9 cm) Mag 24" (61 cm) Lite Spoke 24" (61 cm) Mag |
| Seating | Drop Seat Pan JAY Cushion Seat Pan - Growing |
| Side Guard Options | N/A |
| Side Guards | Plastic Low Plastic Standard |
| Special Packages | N/A |
| Tilt Range | N/A |
| Tilt Release Options | Dual Trigger Cable Release Foot Release |
| Center of Gravity Adjustment | 6" (15.2 cm) |
| Head Support Options | Visit JAY Seating & Positioning Page for Optio |
| Positioning Accessories | 1" (2.5 cm) Comfort Fit Positioning Belt 1" (2.5 cm) Dual Pull Side Squeeze Padded 1.5" (3.8 cm)Auto Style Positioning Belt 2" (5.1 cm) Aircraft Style Padded Positioning 2" (5.1 cm) Aircraft Style Positioning Belt |
| Seat Angle Adjustment | N/A |
| Tilt Capability | Yes |
| Argentina | Yes |
| Aruba | Yes |
| Bahamas | Yes |
| Barbados | Yes |
| Bermuda | Yes |
| Bolivia | Yes |
| Bonaire | Yes |
| Brazil | Yes |
| Chile | Yes |
| Colombia | Yes |
| Costa Rica | Yes |
| Curacao | Yes |
| Dominican Republic | Yes |
| Ecuador | Yes |
| El Salvador | Yes |
| Guatemala | Yes |
| Honduras | Yes |
| Jamaica | Yes |
| Mexico | Yes |
| Nicaragua | Yes |
| Panama | Yes |
| Paraguay | Yes |
| Peru | Yes |
| Puerto Rico | No |
| Trinidad | Yes |
| Uruguay | Yes |

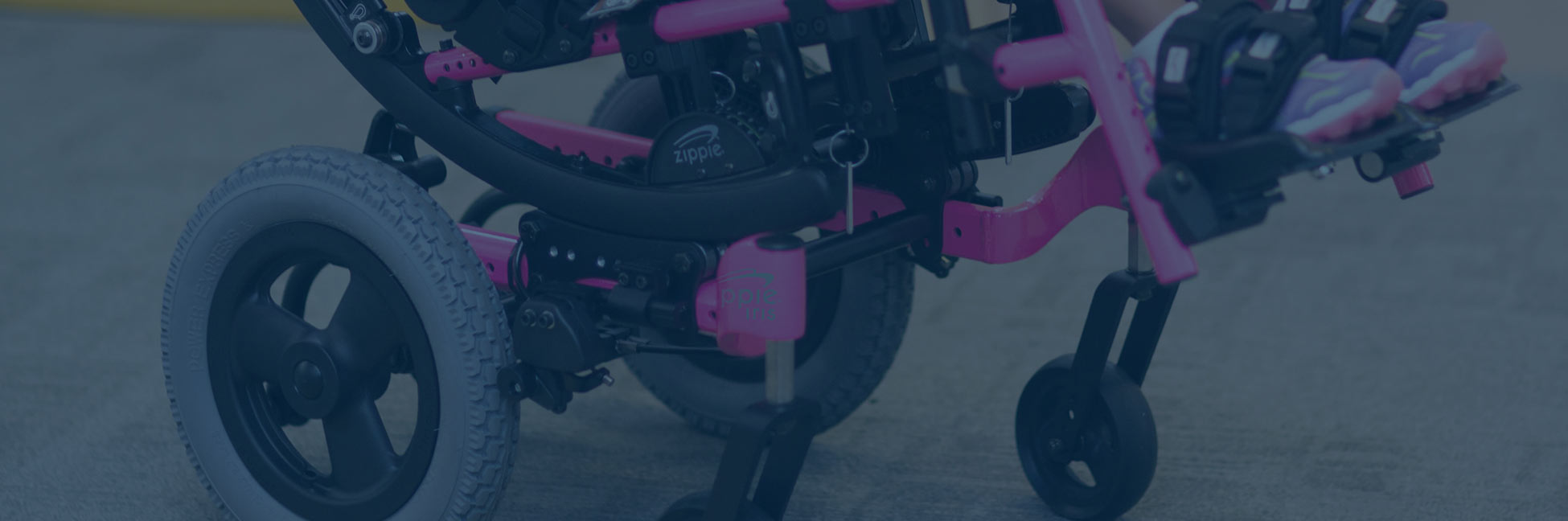

40° or 55° of Smart Rotation in Space Technology
With patented smart rotation technology in space, the IRIS seat frame rotates around the child’s center of gravity. The rotation arm was specifically designed for pediatric users to ensure smooth tilt movement. It also helps keep children comfortable and secure while tilting, and is easy for parents and caregivers to control. Available with rotation ranges of 40° or 55° that can be set to achieve up to 45° or 60° of posterior rotation, the IRIS provides superior positioning capabilities.

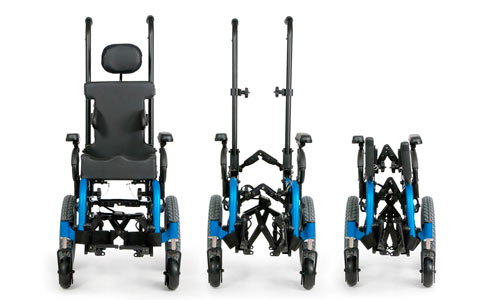

Optional XLOCK® Folding Crossbar
The Zippie IRIS now offers the benefits of space rotation technology and an optional folding frame. Its patented XLOCK folding crossbar locks securely when deployed for superior rigidity and folds into a compact size for convenient transport.
Caregiver Comfort Accessories

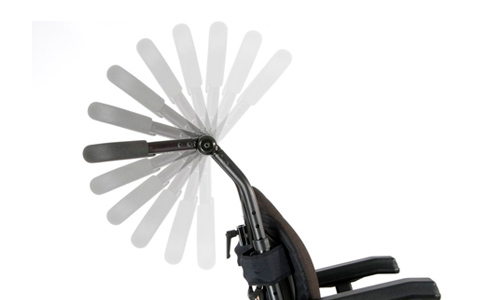

The IRIS is available with a wide variety of options to help manage daily activities related to your child's care. The foot-release tilt actuator eliminates exposed cables. The button cube locks located on the rear posts are compact, easily accessible, and simple to operate for any caregiver. Standard with the height-adjustable backrest, the stroller handle with adjustable angle provides 260° of angle adjustment to accommodate different caregiver heights and allows pushing from a reclined position.

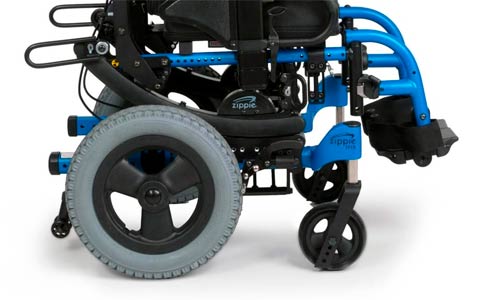

Growth Options
The IRIS is designed to maintain proper support for your child as they grow. The folding frame option offers up to 4” of built-in depth growth and 2” of built-in width growth. The rigid frame option is available with adjustable-width support tubes. Additionally, through the True Fit Growth program, the original owner of the Zippie IRIS qualifies for a free growth kit within 5 years. The growth kit includes all the parts and components needed to adjust the seat’s width/depth. (Not available with Zippie IRIS SE models).

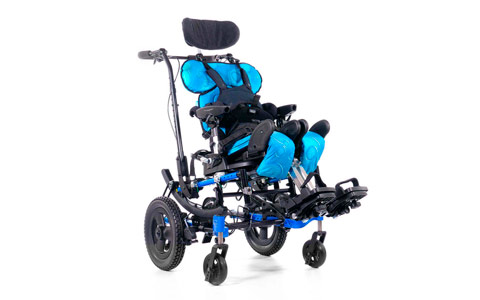

ZIPPIE IRIS with Leckey Seating
The Leckey product offering from Sunrise Medical has something for everyone when it comes to pediatric equipment needs. For us, “supporting children” means working alongside our family of experts, designers, therapists, parents, and the clinical community at large to enable children to reach their goals. Our approach is simple: lead through innovation and clinical focus. Combined with the already extensive ZIPPIE mobility solutions, Sunrise Medical provides a truly comprehensive pediatric offering with this new and innovative Leckey interface.
