Zone Wheelchair
Get in the Zone™ with the lightest Zippie® designed for active kids and teens. The Zippie® Zone™ is an innovative, ultra lightweight, and option-rich pediatric rigid wheelchair that is perfect for active kids and teens. Designed for the unique needs of kids, the Zone™ offers numerous growth options and provides the greatest wheel access for independent mobility.
Ultra Lightweight Aerospace Aluminum
A Design Fit for Kids
Growth Capabilities
Colorful Options
Other Assets
| Back Height | Adjustable: 6" to 8" (15.24 cm to 20.32 |
| Anti-Tips | Rear |
| Armrests | Padded Swing-Away Single-Post Height Adjustable T-Post |
| Axle | Quick Release Steel |
| Back Upholstery | Standard Tension Adjustable Ballistic Nylon |
| Caster Wheels | 3" (7.6 cm) Micro 4" (10.2 cm) Low Profile Polyurethane 4" (10.2 cm) Micro Lighted 4" x 1.5" (10.2 cm x 3.8 cm) Aluminum So 5" (12.7 cm) Low Profile Polyurethane 5" (12.7 cm) Micro lighted 5" (12.7 cm) Soft Roll (Grey) 5" x 1.5" (12.7 cm x 3.8 cm) Aluminum So 5" x 1.5" (12.7 cm x 3.8 cm) Semi-Pneuma 6" (15.2 cm) Polyurethane 6" x 1.5" (15.2 cm x 3.8 cm) Semi Pneuma |
| Chair Weight | 14 lbs. (6.4 kg) |
| Footplates | Aluminum Platform Aluminum Tubular w/ Snap-on Cover Aluminum Tubular Angle Adjustable Flip Back 15" to 18" (38.1 cm to 45.7 cm) |
| Frame Material | 7000 Series Aluminum |
| Frame Style | Rigid |
| Handrims | Aluminum Anodized Natural Fit - Standard Grip Natural Fit - Super Grip Natural Fit LT - Standard Grip Natural Fit LT - Super Grip Plastic Coated Spinergy Flex Rim |
| Overall Chair Width | 16" to 25" (40.6 cm to 63.5 cm) |
| Seat Depths | 8" to 18" (20.3 cm to 45.7 cm) |
| Seat Widths | 8" to 16" (20.3 cm to 40.6 cm) |
| User Weight Capacity | 165 lbs. (74.8 kg) |
| Accessories | Black Spoke Guard Clear Spoke Guard Crutch Holder Seat Pouch Tool Kit Upper Extremity Support Tray (XS, S, M, L) Utility Backpack |
| Arm Pads | Classic Contour |
| Average Shipping Weight | 50 lbs. (22.7 kg) |
| Backrest Type | Folding Lock-Down Angle Adjustable |
| Shipping Dimensions | 31"L x 24"H x 24"W (78.7 cm L x 61 cm H x 61 cm W) |
| Transit Approved | Yes |
| Wheel Locks | 6" (15.2 cm) Extension Handle Option Compact High Mount Pull High Mount Push |
| Angle Adjustable Backrest | -8° to 17° |
| Anodized Color Options | Black Blue Gold Green Purple Red Ti Grey |
| Axle Plate | Adjustable |
| Back Post Options | Fold Down Integral Telescoping Tall Telescoping |
| Backrest Options | Rear Backrest Extension - 4" (10.2 cm) |
| Camber | 0°, 3°, 6° |
| Caster Options | Frog Legs Suspension Fork Multiple Position Fork Multiple Position Single Sided Fork |
| Center of Gravity Adjustment | 2.5" (6.4 cm) |
| Footplate Options | Adaptive Platform Spacers - 2", 4", 6" Gel Hanger Cover High Mount Extension Tubes Leg Strap Neoprene Impact Guards Wear Pads |
| Frame Angle | 80° |
| Frame Inset | 0" or 1" (0 cm to 2.5 cm) |
| Front Seat-to-Floor Height | 14" to 19" (35.6 cm to 48.3 cm) |
| Hangers | N/A |
| Hub Lock | Seat Frame Mounted |
| Model Number | EIRZ1 |
| Rear Seat-to-Floor Height | 13" to 19" (33 cm to 48.3 cm) |
| Rear Wheel Tire | Full Poly High Pressure Clincher Kik Mako Black Knobby V-TRAK by Kenda Low Poly Pneumatic with Airless Insert Pneumatic Schwalbe Marathon Plus Evolution Schwalbe Speed |
| Rear Wheel Type | 18" (45.7 cm) Spoke 20" (50.8 cm) Lite Spoke 20" (50.8 cm) Mag 22" (55.9 cm) Lite Spoke 22" (55.9 cm) Mag 22" (55.9 cm) Spinergy LX Black Spokes 22" (55.9 cm) Ultra Lightweight Spoke Wheel 2 24" (61 cm) Lite Spoke 24" (61 cm) Mag 24" (61 cm) Spinergy LX Black Spokes 24" (61 cm) Spinergy SPOX Black Spokes 24" (61 cm) Ultra Lightweight Spoke Wheel 2.0 |
| Seating | JAY Cushion Ultra Seat Sling |
| Side Guard Options | Frame color match for Aluminum |
| Side Guards | Aluminum Folding Aluminum w/ Fender & Hub Lock Plastic Low Plastic Standard |
| Special Packages | Clear Zippie Spoke Guards Compact Wheel Locks Single Sided Fork Ultra Lightweight Wheels Z Performance Package: |
| Tilt Range | N/A |
| Tilt Release Options | N/A |
| Head Support Options | 2", 4", 6" (5.1 cm, 10.2 cm, 15.2 cm) |
| Positioning Accessories | 1" (2.5 cm) Comfort Fit Positioning Belt 1" (2.5 cm) Dual Pull Side Squeeze Padded 1.5"(4cm) Auto Style Positioning Belt with Cl 2" (5.1 cm) Aircraft Style Positioning Belt 2"(2.5 cm) Aircraft Style Padded Positioning |
| Seat Angle Adjustment | (5.1 cm, 10.2 cm, 15.2 cm) |
| Argentina | Yes |
| Aruba | Yes |
| Bahamas | Yes |
| Barbados | Yes |
| Bermuda | Yes |
| Bolivia | Yes |
| Bonaire | Yes |
| Brazil | No |
| Chile | Yes |
| Colombia | Yes |
| Costa Rica | Yes |
| Curacao | Yes |
| Dominican Republic | Yes |
| Ecuador | Yes |
| El Salvador | Yes |
| Guatemala | Yes |
| Honduras | Yes |
| Jamaica | Yes |
| Mexico | Yes |
| Nicaragua | Yes |
| Panama | Yes |
| Paraguay | Yes |
| Peru | Yes |
| Puerto Rico | No |
| Trinidad | Yes |
| Uruguay | Yes |
Child-Friendly Design
With independence comes confidence. Every inch of the Zone wheelchair is designed to provide children with the best possible access to the wheels for efficient propulsion. Features like the recessed backrest, flip-up and angle-adjustable footrest, and hub lock located on the seat rail allow kids to independently access the wheels, transfer in and out of the wheelchair, and engage the wheel locks without interference during propulsion.

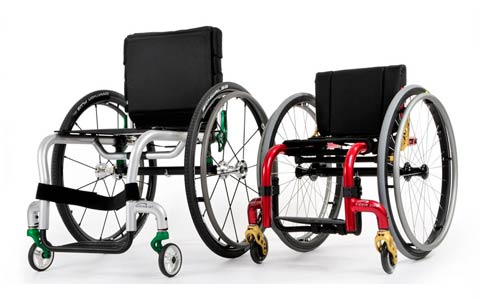

Growth Capabilities
One thing we know for sure is that kids grow! That’s why the Zone pediatric wheelchair includes 3" of built-in growth depth in the frame. An additional 2" of growth depth is incorporated into the sling upholstery. To increase the frame width, simply replace a few parts instead of the entire wheelchair frame.

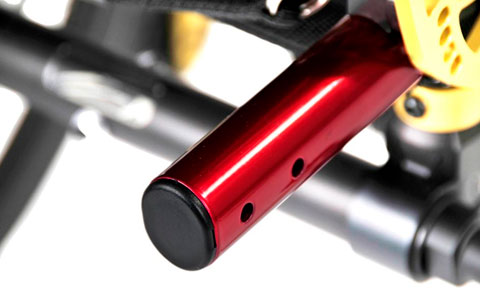

Ultra-Lightweight Aerospace Aluminum
When it comes to pediatric mobility, every pound matters. That’s why we use 7000 series aerospace aluminum to craft the feather-light frame of the Zone. By combining this material with our ShapeLoc heat-treatment process and oval tubing, we increase strength, allow for thinner tube walls, and reduce overall weight, creating a wheelchair that’s lighter, just as strong, and more cost-effective than titanium.

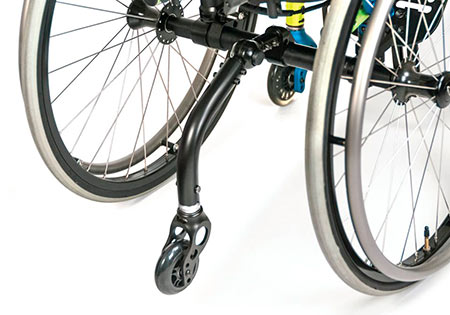

Vibrant Options
We want the Zone wheelchair to reflect your child’s unique personality. In addition to its sleek frame, the Zone also offers bright options, including Zebra and Glow in the Dark frame colors, colorful wheel forks and axle plates, Spinergy wheels, and vibrant spoke guards.
