SR45 Wheelchair
The simple solution for rotation-in-space technology. The QUICKIE® SR45™ tilt-in-space wheelchair features 45° of Intelligent Rotation in Space Technology and a simplified mix of options to provide proper positioning and comfort at an outstanding value.
Power tilt, attendant control, toggle switch
45° of intelligent rotation in space technology
Durable frame
Quickie's top options
Other Assets
| Back Height | 15" to 21" (38.1 cm to 53 cm) or 18" to 24" (45.7 cm to61 cm) |
| Anti-Tips | Rear Anti-tips |
| Armrests | Dual Post Flip Back Height Adjustable Dual Post Height Adjustable Optional Transfer Bar Single-Post Height Adjustable |
| Axle | Quick Release Threaded |
| Back Upholstery | J3 |
| Caster Wheels | 4" x 1.25" (10.2 cm x 3.2 cm) Semi-Pneu 5" (12.7 cm) Low Profile Polyurethane 5" x 1.5" (12.7 cm x 3.8 cm) Semi-Pneu 6" (15.2 cm) Polyurethane 6" x 1.5" (15.2 cm x 3.8 cm) Semi Pneu 8" (20.3 cm) Polyurethane 8" x 1.5" (20.3 cm x 3.8 cm) Semi-Pneu 8" x 2" (20.3 cm x 5.1 cm) Pneumatic 8" x 2" (20.3 cm x 5.1 cm) Pneumatic with Airless Insert |
| Chair Weight | 39 lbs. (17.7 kg) |
| Footplates | Adult Angle Adjustable Aluminum Composite |
| Frame Material | Steel |
| Frame Style | Rotation-in-Space |
| Handrims | Aluminum Anodized Plastic Coated |
| Seat Depths | 14" to 22" (35.6 cm to 55.9 cm) |
| Seat Widths | 14" to 20" (35.6 cm to 50.8 cm) |
| User Weight Capacity | 265 lbs. (120.2 kg) |
| Accessories | Quickie Backpack Tilt Stops |
| Arm Pads | Desk Full |
| Average Shipping Weight | Boxed: 90 lbs. (40.8 kg) and 15 lbs. (6.8 kg) Palletized: 150 lbs. (68 kg) |
| Backrest Type | Folding J3 Non-Folding |
| Positioning Belts | 1.5" (3.8 cm) Auto Buckle 2" (5.1 cm) Padded Aircraft Buckle |
| Shipping Dimensions | 20" x 10" 20" (50.8 cm x 25.4 cm x 50.8cm) 47" x 40" x 54" (119.4 cm x 101.6 cm x 137.2 cm) |
| Transit Approved | Yes |
| Wheel Locks | Attendant (Foot Lock) Optional Extension Handle Push to Lock |
| Angle Adjustable Backrest | -30° to 5° |
| Anodized Color Options | N/A |
| Axle Plate | Standard |
| Back Post Options | Fixed Height Adjustable Reclining |
| Backrest Options | N/A |
| Camber | 0° |
| Caster Options | N/A |
| Center of Gravity Adjustment | N/A |
| Footplate Options | Extension Tubes Heel Loops Toe Loops |
| Frame Angle | N/A |
| Frame Color Options | Black Opal Black Blue Opal Candy Blue Candy Red |
| Frame Inset | N/A |
| Frame Type | Standard |
| Front Seat-to-Floor Height | 14" to 20.5" (35.6 cm to 52.1 cm) |
| Grade Aid | N/A |
| Hangers | 70° Swing In/Out Front Mount 70° Swing In/Out 80° Swing In/Out Front Mount 80° Swing In/Out Elevating |
| Hub Lock | N/A |
| Lower Leg Length Setting | 9.9" to 18.7" (25.1 cm to 47.5 cm) |
| Military Service Patches | N/A |
| Model Number | EIZ9 |
| Power Assist | N/A |
| Rear Seat-to-Floor Height | 14" to 20.5" (35.6 cm to 52.1 cm) |
| Rear Wheel Tire | Full Poly Low Poly Pneumatic with Airless Insert Pneumatic |
| Rear Wheel Type | 12" (30.5 cm Mag) 16" (40.6 cm) Mag 20" (50.8 cm) Mag 22" (55.9 cm) Mag 24" (61 cm) Mag |
| Seating | JAY Cushion Standard Seat Pan |
| Side Guard Options | N/A |
| Side Guards | N/A |
| Special Packages | N/A |
| Suspension | N/A |
| Tilt Range | 45° |
| Tilt Release Options | Backrest Dual Trigger Foot Release |
| Tray Tables | N/A |
| Argentina | Yes |
| Aruba | Yes |
| Bahamas | Yes |
| Barbados | Yes |
| Bermuda | Yes |
| Bolivia | Yes |
| Bonaire | Yes |
| Brazil | Yes |
| Chile | Yes |
| Colombia | Yes |
| Costa Rica | Yes |
| Curacao | Yes |
| Dominican Republic | Yes |
| Ecuador | Yes |
| El Salvador | Yes |
| Guatemala | Yes |
| Honduras | Yes |
| Jamaica | Yes |
| Mexico | Yes |
| Nicaragua | Yes |
| Panama | Yes |
| Paraguay | Yes |
| Peru | Yes |
| Puerto Rico | No |
| Trinidad | Yes |
| Uruguay | Yes |
| USA | No |

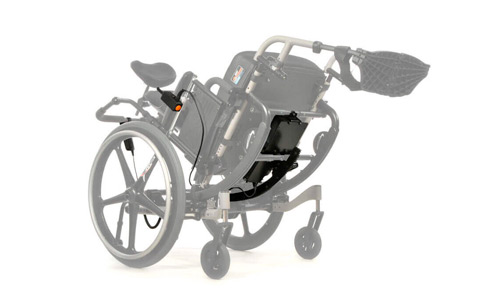

Power Tilt, Attendant Control, Toggle Switch
The power tilt option gives the user greater control over their body position in space and enhances comfort by assisting with sitting tolerance. It provides more independence to participate in daily activities and engage more with the world and others. Power tilt is available for IRIS, IRIS Heavy Duty, and SR45. It allows the caregiver to give control of the tilt function to the user. The battery indicator is displayed at the top of the control so you’ll never have to guess when it’s time to charge. Conveniently hang the attendant control anywhere on the chair. It can be mounted vertically or horizontally depending on user needs. The charging port is conveniently located on the toggle switch for easy access.

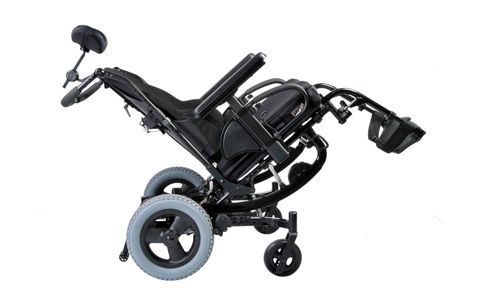

45° Intelligent Rotation-in-Space Technology
Intelligent Rotation-in-Space technology means the seat frame rotates around the user’s center of gravity. This results in a smooth tilt motion that is easy to control and allows for the shortest possible wheelbase that is easy to maneuver. The SR45 offers up to 45° of posterior rotation to improve positioning.

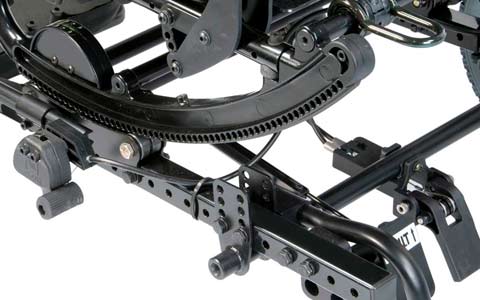

Durable Frame
The SR45 manual wheelchair is designed to withstand heavy use over time. After undergoing rigorous durability testing with its 265 lb weight capacity, you can be confident that the SR45 will last.
Best Quickie Options
The SR45 is available with Quickie’s most popular options and accessories for added comfort and a proper fit, including a wide range of seat widths, seat depths, armrests, wheels, tires, transit brackets, and the foot-release tilt actuator.
