OneLoh Product
Horizon Stander
A revolutionary 3-in-1 stander, the Leckey Horizon Stander is designed for users from kids to adults with complex postural needs. This electric-operated standing system provides outstanding postural support and pelvic stability in either prone, supine, or upright positions. Available with highly adaptable features including chest, hip, knee, and footplate supports to provide easy adjustability and optimal standing positioning to the client.
3-in-1 Stander
Personalized Support
Other Assets
| Size 1 | Size 2 | Size 3 | |
|---|---|---|---|
| Age | 4-10 | 8-14 | 14-Adult |
| User Height | 1000mm-1400mm (39.3”-55.1”) | 1400mm-1800mm (55.1”-70.8”) | 1550mm-1800mm (61”-70.8”) |
| Max. User Weight | 50kg (110lbs) | 80kg (176lbs) | 100kg (220lbs) |
| Shoulder Height (footplate to top of pad) | 820mm-1150mm (32.2”-45.2”) | 1000mm-1450mm (39.3”-57”) | 1000mm-1450mm (39.3”-57”) |
| Hip Pad Height (footplate to top of pad) | 450mm-750mm (17.7”-29.5”) | 750mm- 950mm (29.5”-37.4”) | 750mm-1150mm (29.5”-45.2”) |
| Hip Pad Width | 175mm-270mm (6.8”-10.6”) | 210mm-390mm (8.2”-15.3”) | 310mm-470mm (12.2”-18.5”) |
| Knee Height (footplate to middle of pad) | 250mm- 450mm (9.8”-17.7”) | 400mm-550mm (15.7”-21.6”) | 400mm-650mm (15.7”-25.5”) |
| Width Between Chest Laterals | 200mm-300mm (7.8”-11.8”) | 240mm-380mm (9.4”-14.9”) | 340mm-460mm (13.3”-18.1”) |
| Footplate Angle Adjustment +/- | 10˚ | 10˚ | 10˚ |
| Angle Adjustment | 0°-90°- Prone 0°-90°- Supine | 0°-90°- Prone 0°-90°- Supine | 0°-90°- Prone 0°-90°- Supine |
| Tray Angle Adjustment | 0°-40°- Prone +/- 20°/30°- Supine | 0°-40°- Prone +/- 20°/30°- Supine | 0°-40°- Prone +/- 20°/30°- Supine |
| Argentina | Yes |
| Aruba | Yes |
| Bahamas | Yes |
| Barbados | Yes |
| Bermuda | Yes |
| Bolivia | Yes |
| Bonaire | Yes |
| Brazil | Yes |
| Chile | Yes |
| Colombia | Yes |
| Costa Rica | Yes |
| Curacao | Yes |
| Dominican Republic | Yes |
| Ecuador | Yes |
| El Salvador | Yes |
| Guatemala | Yes |
| Honduras | Yes |
| Jamaica | Yes |
| Mexico | Yes |
| Nicaragua | Yes |
| Panama | Yes |
| Paraguay | Yes |
| Peru | Yes |
| Puerto Rico | No |
| Trinidad | Yes |
| Uruguay | Yes |
| USA | No |
3-in-1 Standing Frame: Prone, Supine, and Upright Standing
Designed for complex standing positions, Horizon is a truly versatile electric standing frame as it offers 3 functions in one product: Prone, Supine, and Upright Standing.
Its robustness, modularity, and adjustments provide optimal support for lower limb asymmetries, spinal deformities, and users with high tone.
The tilt angle in supine or prone can be adjusted from 0° to 90° via the control handset. The option to place the standing frame in a completely horizontal position makes transfers easier.
Benefits of standing
The simple plane adjustment in Horizon allows the user to easily adopt a standing position, which has been shown to offer a wide range of benefits:
Increases bone density and reduces the risk of fractures.
Stretches muscles, preventing contractures.
Facilitates respiratory function and vocalization.
Improves circulation and blood pressure.
Allows the child to interact face-to-face with peers.
Enhances overall well-being, attention, and sleep patterns.
Facilitates digestion, bowel, and bladder function.
Optimizes hip joint formation in early development.
Prevents skin damage caused by prolonged sitting.
Customized support
The HORIZON electric standing frame by Leckey can be easily customized to meet each user’s specific needs and therapy goals.
The flexible lateral trunk supports provide appropriate support, whether in prone, supine, or upright standing, while the pelvic belt keeps the pelvis in a safe and stable position.
The knee supports can be adjusted to accommodate or correct knee flexion, and the standard footrests are adjustable for plantar and dorsal flexion, with a swing-away option to ease transfers.
Independence and optimal function
Horizon promotes independence with a range of optional extras, including an activity bar and support bars that encourage interactive activities with family and peers.

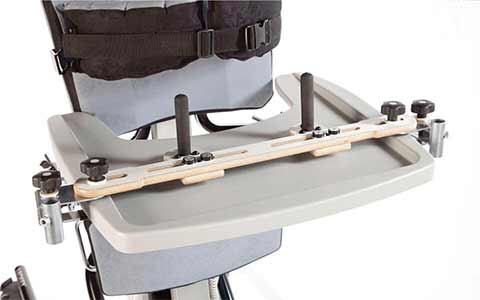

The optional tray with grab bar can be used to support daily activities while the user is standing. Its angle adjustment allows independent use regardless of the chassis tilt angle.
