Time and again, research has shown the necessity of good toileting for children’s health. So Rifton designed the HTS with that in mind. Hygienic, simple, affordable, the Rifton HTS promotes the forward positioning that is ideal and natural for effective toileting. Meanwhile, its versatility and simplicity – usable on, over and off the toilet, no tools required – make the lives of caregivers better too.
Supportive and comfortable

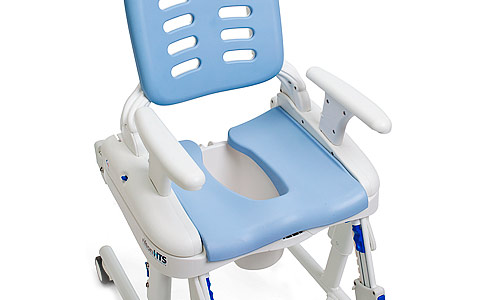

Reduces Cleanup
Grows with the Child

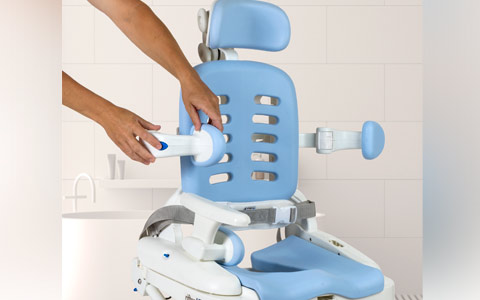

Independently Adjustable Laterals
Other Assets
Small Medium Large
Tilt-in-space mobile base footprint 21 x 27" 21 x 27" 23.5 x 33"
Tilt-in-space base length at full recline 43" 49.25" 57.25"
Non-tilt base footprint 20 x 25" 20 x 25" 23.5 x 29"
Seat (front) to footboard height 8.5 – 13.5" 10.5 – 15.5" 11.25 – 17.5"
Seat (front) to floor; mobile tilt frame 15.5 – 21.5" 15.5 – 21.5" 17.5 – 23"
Seat (front) to floor; mobile non-tilt frame 16 – 20" 17 – 20.5" 18 – 22"
Seat (front) to floor; stationary non-tilt frame 13 – 17" 14 – 17.5" 15 – 19"
Seat depth (1" increments) 8 / 9 / 10 / 11" 11.5 / 12.5 / 13.5 / 14.5" 14.5 / 15.5 / 16.5 / 17.5"
Seat width 12"
with hip guides: 8 / 10"
14"
with hip guides: 10 / 12"
with hip guides (thick pads): 8 / 10"
17"
with hip guides: 13 / 15"
with hip guides (thick pads): 11 / 13"
Hole size in seat pad open 4 x 9"
closed 3 x 8"
open 4.5 x 12"
closed 3.5 x 10"
open 6 x 14"
closed 4.5 x 12"
Armrest height above seat 5.25" 6.5" 8"
Backrest height above seat 16.5" 19.5" 24.5"
Backrest width 11.5" 13.5" 16"
Distance between laterals 4.75 – 12" 6.75 – 14.5" 10.5 – 18"
Tilt-in-space FORWARD
Tilt-in-space BACK 25° 25° 25°
Backrest angle adjustment (degrees) 6° fwd, 6° and 18° back 6° fwd, 6° and 18° back 6° fwd, 6° and 18° back
Footboard angle adjustment (degrees) 10°, 20° or 30° fwd, 10° back 10°, 20° or 30° fwd, 10° back 10°, 20° or 30° fwd, 10° back
Maximum clearance height under seat (tilt frame) 20.5" 20.5" 20.75"
Maximum clearance height under seat (stationary non-tilt frame) 15" 15" 16.5"
Maximum clearance height under seat (mobile non-tilt frame) 18" 18" 19.5"
Portability base clearance (fits over ADA compliant toilets) 18.5" 18.5" N/A
Portability kit carry bag dimensions 19.5" high x 21.25" wide x 10" deep 19.5" high x 21.25" wide x 10" deep N/A
Bottom of frame to floor; tilt-in-space mobile base 2" 2" 2"
Tub base footprint 23 x 16.5" at feet / 19" at top 23 x 16.5" at feet / 19" at top N/A
Tub base height 11" at front x 9.5" at back 11" at front x 9.5" at back N/A
Maximum working load 75 lbs 150 lbs 250 lbs
