OneLoh Product



Pacer Gait Trainer
Walking is a complex function. When we talk about dynamic gait training we refer to the often unobserved but significant shifts of body and weight that occur in typical gait patterns. In the therapy community there is a growing consensus that a well-positioned pelvis in combination with dynamic movement is critical to successful gait training. A specialized gait trainer, like the Rifton Dynamic Pacer, helps achieve this proper positioning and provides the dynamic weight bearing and weight shifting needed for a more natural gait pattern and easier stepping.
Dynamic Movement

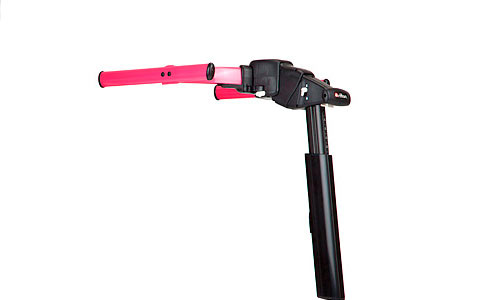

Choice of 2 Upper Frames
Quick and Easy Positioning
Choice of 5 Colors
Other Assets
Mini | Small | Medium | Large | XL | |
---|---|---|---|---|---|
Floor to top of arm prompt | 15.5-20.5" | 19-29" | 24-35" | 32-47" | 34-49" |
Floor to top of MPS (not tilted)* | N/A | 10-20" | 9.5-23.5" | 17-35" | 19.5-37.5" |
Overall width | 20.5" | 23" | 26/30" | 28/32" | 31.5" |
Overall length | 22.5" | 26" | 30/36" | 36/40.5 | 39.75" |
Frame height | 12.5" | 16-21" | 21.5-27" | 28.5-38.5" | 31-41" |
Base height (without upper frame) | N/A | 11" | 14.5" | 16" | 18.5" |
Frame weight (lbs) | 10.25 lbs | Base: 11.5 lbs Standard upper: 6 lbs Dynamic upper: 7.5 lbs |
Standard base: 15 lbs Utility base: 18.5 lbs Standard upper: 7.5 lbs Dynamic upper: 11.5 lbs |
Standard base: 15.5 lbs Utility base: 19.25 lbs Standard upper: 9.5 lbs Dynamic upper: 13.5 lbs |
Base: 22.5 lbs Standard upper: 11 lbs Dynamic upper: 15 lbs |
Dynamic upper movement | N/A | Vertical: 1.25" Horizontal: 1.5" |
2" vert/horiz | 2" vert/horiz | 2" vert/horiz |
Caster diameter | 4" | 4" | Standard base: 5.5" Utility base front casters: 8" Utility base back wheels: 11.5" |
Standard base: 5.5" Utility base front casters: 8" Utility base back wheels: 11.5" |
Standard base: 5.5" Utility base front casters: 8" Utility base back wheels: 11.5" |
Maximum working load (lb) | 50 lbs | 75 lbs | 150 lbs | 200 lbs | 250 lbs |
