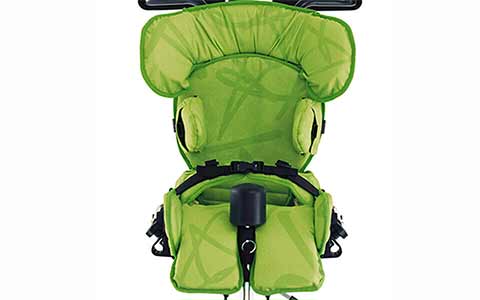

Suitable for use as a home chair, school chair, or with a Hi-Low base, the Leckey Squiggles Seating System is designed to meet all the postural and comfort requirements of young children with special needs while still maintaining a fun, colorful design. This pediatric seating and positioning system provides unparalleled postural positioning of the pelvis, torso, head, and legs while giving the child the greatest possible freedom of movement.

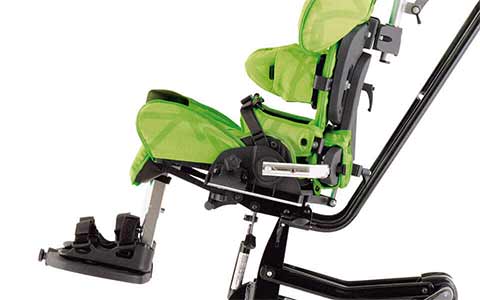

Hi-low Base
Grows with the Child
Promotes Pelvic Comfort and Stability
Other Assets
Width Easy chassis: 20.7” (526 mm)
Hi-low chassis: 21.3” (541 mm)
Seat unit: 14.6” (371 mm)
Back Height Sitting shoulder height: 12.6 – 15” (320 – 381 mm)
With shoulder support: 16.5 – 18.9” (419 – 480 mm)
User Weight Capacity 48.4 lbs (22 kg)
Tilt Range Easy chassis prone: 20°
Easy chassis recline: 20°
Hi-low chassis prone: 10°
Hi-low chassis recline: 30°
Seat width 6.3 – 10.2” (160 – 259 mm)
Weight Seat w/ Easy chassis: 23.1 lbs (10.5 kg)
Seat w/ Hi-low chassis: 33 lbs (15 kg)
Height Easy chassis: 10.4” (264 mm)
Hi-low chassis: 12.4” (315 mm)
Seat unit: 15.7” (399 mm)
Length Easy chassis: 24.8” (630 mm)
Hi-low chassis: 25.2” (640 mm)
Seat unit: 14.6” (371 mm)
User Height 29.5 – 43.3” (749 – 1100 mm)
Seat to Footrest 4.8 – 10.6” (122 – 269 mm)
Tray sizes 18.1 – 22” (460 – 559 mm)
Seat Depth 7.5 – 11.4” (191 - 290 mm)
Age Range 1-5 years
Back Angle Adjustment Prone 10°
Recline 25°
Chest width 6.3 – 8.75” (160 – 222 mm)
Footplate angle Dorsiflexion: 10°
Plantarflexion: 10°
Tray height range 4.5 – 6.7” (114 – 170 mm)
Knee width 3.5” (89 mm)
