Q2 Wheelchair
Versatile, modular, and available in an endless number of configurations, the Quickie® 2 has been the industry's favorite ultra lightweight manual wheelchair for over 25 years.
Frame Types Accommodate Changing Needs
Most Seat-to-Floor Height Options
Large Assortment of Seat and Frame Depths
Largest Choice of Footrest Options
Other Assets
| Back Height | 9" to 21" (22.9 cm to 53.3 cm) |
| Anti-Tips | Rear Anti-tips |
| Armrests | Adjustable Locking Flip-up (DAB) Flip Back Height Adjustable Classic Flip Back Height Adjustable LITE Flip Back Length Adjustable Locking Flip-up (DAB) Padded Swing-Away Single Post Height Adjustable Low Single Post Height Adjustable Standard |
| Axle | Quad Quick Release Steel Quick Release Steel |
| Back Upholstery | Depth Adjustable Solid Back JAY® GO Back JAY® J3™ Back Standard Nylon Upholstery Tension Adjustable 3DX Vented Tension Adjustable Ballistic |
| Caster Wheels | 3" (7.6 cm) Micro 4" (10.2 cm) Low Profile Polyurethane 4" (10.2 cm) Micro Lighted 4" x 1" (10.2 cm x 2.5 cm) Aluminum Poly 4" x 1.25" (10.2 cm x 3.2 cm) Semi Pneu 4" x 1.5" (10.2 cm x 3.8 cm) Aluminum So 5" (12.7 cm) Low Profile Polyurethane 5" (12.7 cm) Micro lighted 5" (12.7 cm) Soft Roll (Grey) 5" x 1" (12.7 cm x 2.5 cm) Aluminum Poly 5" x 1.5" (12.7 cm x 3.8 cm) Aluminum So 5" x 1.5" (12.7 cm x 3.8 cm) Semi-Pneu 6" (15.2 cm) Pneumatic 6" (15.2 cm) Polyurethane 6" x 1.5" (15.2 cm x 3.8 cm) Aluminum So 6" x 1.5" (15.2 cm x 3.8 cm) Semi Pneu 6" x 1.5" (15.2 cm x 3.8 cm) Semi Pneu 7" (17.8 cm) Polyurethane 8" (20.3 cm) Pneumatic 8" (20.3 cm) Polyurethane 8" x 1.5" (20.3 cm x 3.8 cm) Semi Pneu 8" x 1.5" (20.3 cm x 3.8 cm) Semi Pneu 8" x 2" (20.3 cm x 5.1 cm) Pneumatic |
| Chair Weight | Quickie 2 HP: 27.9 lbs. (12.6 kg) Quickie 2 Lite Fixed Front: 25.5 lbs. (11.6 kg) Quickie 2 Lite Swing Away: 27.7 lbs. (12.6 kg) Quickie 2: 28.9 lbs. (13.1 kg) |
| Footplates | Aluminum Angle Adjustable - Extension Mount Aluminum Angle Adjustable - Front Mount Aluminum Footplate - Fixed Composite Angle Adjustable Composite Platform Flip Up |
| Frame Material | Aluminum |
| Frame Style | Folding |
| Handrims | Aluminum Anodized Natural Fit - Standard Grip Natural Fit - Super Grip Natural Fit LT - Standard Grip Natural Fit LT - Super Grip Plastic Coated Projection - 8 Oblique Spinergy Flex Rim |
| Seat Depths | Quickie 2 Lite: 14" to 20" (35.6cm - 50.8cm) Quickie 2: 12" to 20" (30.5cm - 50.8cm) Quickie 2HP: 10" to 20" (27.9cm - 55.9cm) |
| Seat Widths | Quickie 2 Lite: 4" to 20" (35.6cm - 50.8cm) Quickie 2: 12" to 22" (30.5cm - 55.9cm) |
| User Weight Capacity | Quickie 2 HP: 250 lbs. (113.4kg) Quickie 2/Quickie 2 Lite: 265 lbs. (120.2kg) Quickie 2/Quickie 2HP Heavy Duty:350 lbs. (158.8kg) |
| Accessories | Black Spoke Guard Caddy Clear Spoke Guard Crutch Holder Extra Leg Strap Black Gel Cover Hanger/Frame Gel Cover Swing-Away Armrest Impact Guard Neoprene IV Holder O2 Holder Quickie Backpack Seat Pouch Tool Kit Zippie Backpack |
| Arm Pads | Desk Length - Classic Desk Length - Contour Full Length - Classic Full Length - Contour |
| Average Shipping Weight | 50 lbs. (22.7 kg) |
| Backrest Type | Angle Adjustable -15° to +3° Depth Adjustable (DAB) Standard |
| Positioning Belts | 1.5" (3.8 cm) Auto Buckle 2" (5.1 cm) Aircraft Buckle 2" (5.1 cm) Padded Aircraft Buckle |
| Shipping Dimensions | 33" Lx38"Hx13"W (83.8 cm L x 96.5 c |
| Transit Approved | Yes |
| Wheel Locks | 6" (15.2 cm) Extension Handle Pair Arm pad Foam - Long Arm pad Foam - Short Compact Ergo Scissor High Mount Pull High Mount Push |
| Angle Adjustable Backrest | -15° to +3° |
| Anodized Color Options | N/A |
| Axle Plate | Amputee Adjustable Curved Adjustable Offset Adjustable One Arm Drive Standard Adjustable |
| Back Post Options | 7" (12.7 cm - 17.8 cm) Pivot Height Angle Adjustable Straight Push Handle Depth Adjustable Back - Post Medium Depth Adjustable Back - Post Standard Depth Adjustable Back - Post Tall Depth Adjustable Back Swing Away Stroller Handles Push Handle 8° Push Handle Straight Regular Stroller Handles Tall Stroller Handles |
| Backrest Options | Reinforced Upholstery Stabilizer Bar |
| Camber | 0°, 3° standard |
| Caster Options | Caster Pin Locks |
| Footplate Options | Extension Tubes Heel Loops Leg Strap |
| Frame Angle | Quickie 2 Lite Fixed Front: 70° or 80° |
| Frame Color Options | Desert Camouflage Hot Sparkle Pink Matte Black Cherry Matte Black Matte Electric Blue Matte Evergreen Matte Purple Mauve Pink Mossy Oak Camouflage Silver Texture Sparkle Silver Stars & Stripes Sunrise Orange Titanium Color Paint Yellow |
| Frame Inset | N/A |
| Frame Type | 70° Fixed Front Frame 80° Fixed Front Frame Depth Adjustable Back (DAB) Heavy Duty Rear Side Frame Rounded Rear Side Frame Straight |
| Front Seat-to-Floor Height | 13.5" to 22" ( 34.3cm - 55.9cm) |
| Grade Aid | Grade Aid |
| Hangers | 60° Hemi Swing In/Out Hanger 60° Swing In/Out Hanger 70° Hemi Swing In/Out Hanger 70° Swing In/Out Front Mount 70° Swing In/Out Hanger 80° Swing In/Out Front Mount 80° Swing In/Out Hanger 90° Swing In/Out Front Mount Articulating Hanger Elevating Hanger Elevating Hanger Front Mount |
| Hub Lock | N/A |
| Lower Leg Length Setting | 5.5" to 20.5" (14 cm to 52.1 cm) |
| Model Number | Quickie 2/Quickie 2 Lite: EIQ2N |
| Power Assist | (Not available on Quickie 2 Lite) Quickie Xtender™ with 4x Torque Multiplier SPARE 24"(61 cm) Spoke Pneumatic Plastic SPARE 61 cm Spoke Pneumatic Aluminum Xtender Spare Nimh Power Pack |
| Rear Seat-to-Floor Height | 13" to 22" (33 cm to 55.9 cm) |
| Rear Wheel Tire | Full Poly High-Pressure Clincher Knobby V-TRAK Mountain Tire Pneumatic with Airless Insert Pneumatic Schwalbe® Marathon Plus Evolution SHOX® Performance Poly |
| Rear Wheel Type | 20" (50.8 cm) Lite Spoke Wheel 20" (50.8 cm) Mag Wheel 22" (55.9 cm) Lite Spoke Wheel 22" (55.9 cm) Mag Wheel 22" (55.9 cm) Spinergy LX Black 22" (55.9 cm) Spinergy SPOX Black 22" (55.9 cm) Ultra Lightweight Spoke Wheel 24" (61 cm) Lite Spoke Wheel 24" (61 cm) Mag Wheel 24" (61 cm) Mountain 24" (61 cm) Spinergy LX Black 24" (61 cm) Spinergy SPOX Black 24" (61 cm) Ultra Lightweight Spoke Wheel 25" (63.5 cm) Lite Spoke Wheel 25" (63.5 cm) Spinergy LX Black 25" (63.5 cm) Spinergy SPOX Black 26" (66 cm) Lite Spoke Wheel 26" (66 cm) Spinergy LX Black 26" (66 cm) Spinergy SPOX Black |
| Seating | 2" (5.1 cm) Cushion JAY Cushions/Backs Seat Sling |
| Side Guard Options | N/A |
| Side Guards | Plastic - Low Plastic - Standard |
| Special Packages | N/A |
| Suspension | Frog Legs Suspension Fork |
| Tilt Range | N/A |
| Tilt Release Options | N/A |
| Tray Tables | Large Medium Small X-Large |
| Center of Gravity Adjustment | -1" to 4.5" (-2.5 cm to 11.4 cm) |
| Argentina | Yes |
| Aruba | Yes |
| Bahamas | Yes |
| Barbados | Yes |
| Bermuda | Yes |
| Bolivia | Yes |
| Bonaire | Yes |
| Brazil | Yes |
| Chile | Yes |
| Colombia | Yes |
| Costa Rica | Yes |
| Curacao | Yes |
| Dominican Republic | Yes |
| Ecuador | Yes |
| El Salvador | Yes |
| Guatemala | Yes |
| Honduras | Yes |
| Jamaica | Yes |
| Mexico | Yes |
| Nicaragua | Yes |
| Panama | Yes |
| Paraguay | Yes |
| Peru | Yes |
| Puerto Rico | No |
| Trinidad | Yes |
| Uruguay | Yes |
| USA | No |

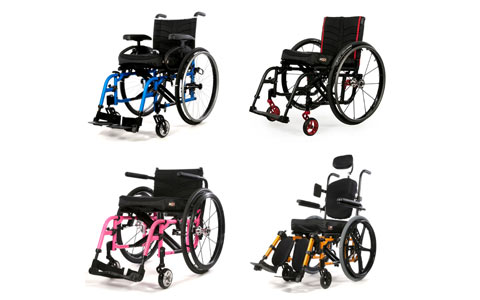

Frame Types Adapt to Changing Needs
Whether it’s your first chair or your fifth, bodies and lifestyles change in different ways. The QUICKIE 2 features three different rear frame types, including a straight, rounded, and depth-adjustable backrest. One size doesn’t fit all—but one chair can.
The Most Seat-to-Floor Height Options

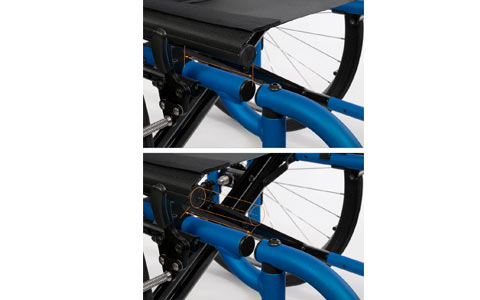

Wide Range of Seat and Frame Depths
With nine seat depth frames, 11 frame widths, and eight different frame depths, the QUICKIE 2 is designed to fit you—today and in the future.
The Largest Variety of Footrest Options
Are 11 different footrest/legrest options too many? We don’t think so. We all sit differently in our chairs. We offer fixed front and swing-away options for those who prefer a sleek look and feel. And for those who need extra space when transferring in or out of the chair, check out the inward/outward swing options. Don’t sacrifice comfort just to fit your chair.
