X'CAPE Wheelchair
Rigid wheelchair performance and folding wheelchair convenience. The ZIPPIE X’CAPE pediatric folding wheelchair is the first ever wheelchair with XLOCK™ technology for the performance of a rigid frame and the convenience of a folding frame. Designed for active and growing kids, the ZIPPIE X'CAPE weighs as little as 19 pounds and features a versatile frame available in over 600 color combinations.
Pediatric-Specific Design
XLOCK® Crossbrace for Performance and Convenience
Z-finity® System for Lower Extremity Positioning
VersaRail™ for Limitless Seating and Accessory Options
Other Assets
| Back Height | Dynamic: 12" - 24" (30.5 cm - 61 cm) Standard: 9" - 24" (22.9 cm - 61 cm) |
| Anti-Tips | Front or Rear |
| Armrests | Adjustable Locking Flip-up Flip-up Length Adjustable Locking Flip-Up Single Post Height Adjustable Low Single Post Height Adjustable Standard T-Post Regular with Foam and Sideguard T-Post Tall with Foam and Sideguard |
| Axle | One Arm Drive Quad Quick Release Quick Release |
| Back Upholstery | Standard Upholstery Tension Adjustable Back Upholstery - Ballistic Tension Adjustable Back Upholstery - Vented |
| Caster Wheels | 3" (7.6 cm) Micro 4" (10.2 cm) Low Profile Polyurethane 4" (10.2 cm) Micro Lighted 4" x 1.5" (10.2 cm x 3.8 cam) Aluminum 5" (12.7 cm) Low Profile Polyurethane 5" (12.7 cm) Micro lighted 5" (12.7 cm) Soft Roll (Grey) 5" x 1.5" (12.7 cm x 3.8 cm) Aluminum 5" x 1.5" (12.7 cm x 3.8 cm) Semi-Pneuma 6" (15.2 cm) Polyurethane 6" x 1.5" (15.2 cm x 3.8 cm) Semi Pneuma |
| Footplates | Angle Adjustable Platform Footboard Multi-Angle Adjustable |
| Frame Material | Aluminum |
| Frame Style | Folding |
| Handrims | Aluminum Anodized Natural Fit - Standard Grip Natural Fit - Super Grip Natural Fit LT - Standard Grip Natural Fit LT - Super Grip Plastic Coated Spinergy Flex Rim |
| Seat Depths | 8" - 18" (20.3 cm - 45.7 cm) |
| Seat Widths | 8" - 16" (20.3 cm - 40.6 cm) |
| User Weight Capacity | 165 lbs (74.8 kg) |
| Accessories | Black Spoke Guard Caddy Clear Spoke Guard Crutch Holder Designer Spoke Guard (10 designs available) Seat Pouch Tool Kit Upper Extremity Support Tray (XS, S, M, L) Utility Backpack |
| Arm Pads | Classic Foam |
| Average Shipping Weight | 50 lbs. (22.7 kg) |
| Backrest Type | Dynamic Standard (Adjustable) |
| Shipping Dimensions | 33"Lx38"Hx13"W(83.8cmLx96.5cmHx33cm |
| Transit Approved | Reference Owner's Manual for Complete Details Transit Approved for Occupant |
| Wheel Locks | 6" Extension Handle Compact Foot Lock High Mount Pull High Mount Push |
| Angle Adjustable Backrest | Fore (-) 8° to Aft (+) 24° |
| Axle Plate | One Arm Drive Standard |
| Back Post Options | Folding Push Handle Integral Push Handle Straight without Push Handle |
| Backrest Options | JAY Seating through Compatibility Assurance |
| Camber | 0°, 3° |
| Caster Options | Carbotecture Fork Frog Legs Suspension Fork |
| Footplate Options | Extension Tubes (Hemi Short, Short, Medium, Long) Neoprene Impact Guards |
| Frame Angle | 80° |
| Frame Color Options | Candy Red |
| Frame Inset | N/A |
| Frame Type | Folding Standard |
| Front Seat-to-Floor Height | 13" - 18.5" (33 cm - 47 cm) |
| Hub Lock | 12" (30.5 cm) 16" (40.6 cm) 20" - 24" (50.8 cm - 61 cm) Lite Spoke |
| Rear Seat-to-Floor Height | 11" - 18.5" (27.9 cm - 47 cm) |
| Rear Wheel Tire | Full Poly High Pressure Clincher Knobby V-TRAK by Kenda Low Poly Pneumatic with Airless Insert Pneumatic Schwalbe Marathon Plus Evolution Schwalbe Speed SHOX Performance Poly |
| Rear Wheel Type | 12" (30.5 cm) Mag 16" (40.6 cm) Mag 20" (50.8 cm) Lite Spoke 20" (50.8 cm) Mag 5 Spoke 22" (55.9 cm) Lite Spoke 22" (55.9 cm) Mag 5 Spoke 22" (55.9 cm) Spinergy LX Black Spokes 22" (55.9 cm) Spinergy SPOX Black Spokes 22" (55.9 cm) Ultra Lightweight Spoke Wheel 2 24" (61 cm) Lite Spoke 24" (61 cm) Mag 5 Spoke 24" (61 cm) Spinergy LX Black Spokes 24" (61 cm) Spinergy SPOX Black Spokes 24" (61 cm) Ultra Lightweight Spoke Wheel 2.0 |
| Seating | JAY Cushion Seat Sling |
| Side Guard Options | N/A |
| Side Guards | Plastic Low Plastic Standard |
| Special Packages | N/A |
| Tilt Range | N/A |
| Tilt Release Options | N/A |
| Center of Gravity Adjustment | 3" (7.6 cm) |
| Head Support Options | Visit JAY Pages for Options |
| Overall Wheelchair Width | 14.8" - 26.5" (37.6 cm - 67.3 cm) |
| Positioning Accessories | 1" (2.5 cm) Comfort Fit Positioning Belt 1"(2.5cm)Dual Pull Side Squeeze Padded 1.5" (3.8 cm) Auto Style Positioning Belt 2" (5.1 cm) Aircraft Style Positioning Belt 2"(5.1 cm)Aircraft Style Padded Positioning B |
| Seat Angle Adjustment | N/A |
| Tilt Capability | N/A |
| Wheelchair Weight | 19 lbs.(8.6 kg) |
| Argentina | Yes |
| Aruba | Yes |
| Bahamas | Yes |
| Barbados | Yes |
| Bermuda | Yes |
| Bolivia | Yes |
| Bonaire | Yes |
| Brazil | Yes |
| Chile | Yes |
| Colombia | Yes |
| Costa Rica | Yes |
| Curacao | Yes |
| Dominican Republic | Yes |
| Ecuador | Yes |
| El Salvador | Yes |
| Guatemala | Yes |
| Honduras | Yes |
| Jamaica | Yes |
| Mexico | Yes |
| Nicaragua | Yes |
| Panama | Yes |
| Paraguay | Yes |
| Peru | Yes |
| Puerto Rico | No |
| Trinidad | Yes |
| Uruguay | Yes |
| USA | No |

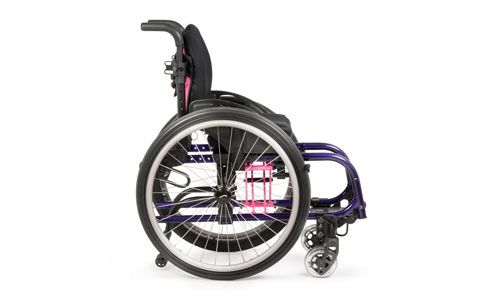

Pediatric-Specific Design
The Zippie X’CAPE was designed with the goal of helping children with varying mobility needs transition to their next level of independence. One of the lightest pediatric folding wheelchairs at as little as 19 lbs, the X'CAPE allows your child to spend less energy on propulsion and more on playing, exploring, and being a kid!
The X'CAPE's setup can be fine-tuned to provide the best possible access to the wheels for each child. As they grow, 2" of growth in the crossbrace and 3" in the seat rail keep your child positioned properly for maximum independence.

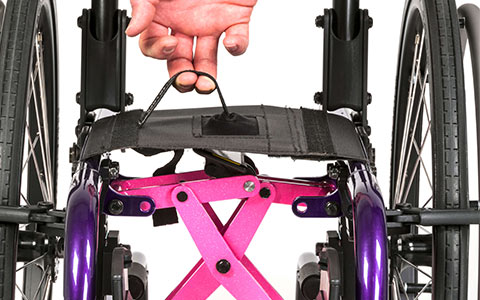

XLOCK® Crossbrace for Performance and Convenience
The Zippie X'CAPE's patented XLOCK® folding crossbrace fully locks when unfolded, creating a level of performance, efficiency, and durability comparable to a rigid frame wheelchair. And it couldn't be easier to transport. One-step push-to-lock and pull-to-fold functions are easy to operate with just one hand.
The X'CAPE's 27 frame colors and 24 crossbrace colors can be chosen separately to create over 600 color combinations, so your child can sport their team colors, school colors, or personal favorites!

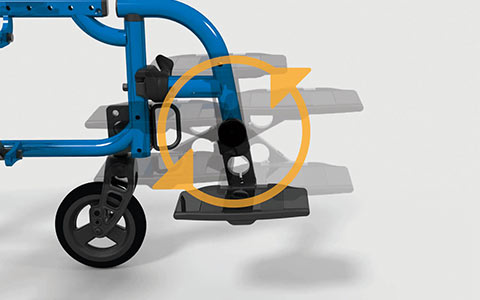

Z-finity® System for Lower Extremity Positioning
The Z-finity® System's footplate can be adjusted between .5" above the seat pan to 21" below the seat pan to provide proper support as your child grows. Its pivot arm allows for infinite adjustment of the footrest angle and placement to achieve optimal positioning of the feet, ankles, and knees.
Z-finity is available with both of the X'CAPE's front frame options - Swing-in/Swing-out and Fixed. Choose Swing-in/Swing-out hangers for aid in transfers and pulling up close to cabinets and counters. Choose Fixed hangers for the lightest weight configuration and an active style.

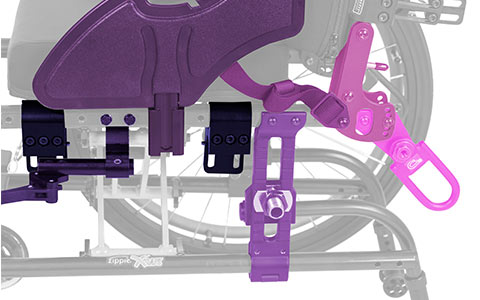

VersaRail™ for Limitless Seating and Accessory Options
Pediatric wheelchairs often don't provide enough space to mount multiple components and accessories - made-to-order seating, armrests, wheel locks, and side guards - leaving you in the tough spot of choosing what is most important. VersaRail's unique design accepts both bolt-on mounts and mounting clamps, and allows for shared placement of these components. so your child has access to all the options they need - no compromises.
The VersaRail also makes ordering simple by offering one seat rail system that is compatible with both sling upholstery and made-to-order seating options.
