QUICKIE IRIS Wheelchair
The superior standard for rotation-in-space technology. The QUICKIE® IRIS™ is the ultimate tilt-in-space wheelchair. With 55° of Intelligent Rotation in Space Technology, the broadest range of positioning and caregiver options, and numerous adjustments, it's hard to believe that the IRIS™ is also the lightest tilt-in-space wheelchair available today.
Power tilt, attendant control, toggle switch
40° or 55° of intelligent rotation in space technology
JAY lower extremity support
MONO backrest system® option
Other Assets
| Back Height | 15" to 21 (38.1 cm to 53.3 cm) 18" to 24" (45.7 cm to 61 cm) |
| Anti-Tips | Rear Anti-tips |
| Armrests | Adjustable Locking Flip-up Dual Post Flip Back Height Adjustable Dual Post Flip Back Dual Post Height Adjustable Dual Post Length Adjustable Locking Flip-Up Single Post Height Adjustable |
| Axle | Quick Release Threaded |
| Back Upholstery | J3 |
| Caster Wheels | 4" x 1.25" (10.2 cm x 3.2 cm) Semi-Pneu 5" x 1" (12.7 cm x 2.5 cm) Polyurethane 5" x 1.5" (12.7 cm x 3.8 cm) Semi-Pneu 6" x 1" (15.2 cm x 2.5 cm) Polyurethane 6" x 1.5" (15.2 cm x 3.8 cm) Semi Pneu 8" x 1" (20.3 cm x 2.5 cm) Polyurethane 8" x 1.5 " (20.3 cm x 3.8 cm) Semi-Pneu 8" x 2" (20.3 cm x 5.1 cm) Pneumatic 8" x 2"(20.3 cm x 5.1 cm) Pneumatic with Airless Insert |
| Chair Weight | 39 lbs. (17.7 kg) |
| Footplates | Adult Angle Adjustable Aluminum Composite Kids Angle Adjustable Platform Flip-up |
| Frame Material | Aluminum |
| Frame Style | Rotation-in-Space |
| Handrims | Aluminum Anodized Plastic Coated |
| Seat Depths | 14" to 22" (35.6 cm to 55.9 cm) |
| Seat Widths | 14" to 22" (35.6 cm to 55.9 cm) |
| User Weight Capacity | Heavy Duty: 350 lbs. (158.8 kg) Standard: 250 lbs. (113.4 kg) |
| Accessories | Black Spoke Guards Caddy Clear Spoke Guards IV Pole O2 Holder Quickie Backpack Seat Pouch Vent Tray for LTV Ventilators Vent Tray for Trilogy Ventilators |
| Arm Pads | Desk Length - Classic Desk Length - Contour Foam Full Length - Classic Full Length - Contour |
| Average Shipping Weight | Boxed: 90 lbs. (40.8 kg) and 15 lbs. (6.8 kg) Palletized: 150lbs. (68 kg) |
| Backrest Type | Dynamic Fixed Height Adjustable J3 Reclining |
| Positioning Belts | 1.5" (3.8 cm) Auto Buckle 2" (5.1 cm) Aircraft Buckle 2" (5.1 cm) Dual Pull Squeeze Pad 2" (5.1 cm) Padded Aircraft Buckle |
| Shipping Dimensions | 20" x 10" x 20" (50.8 cm x 25.4 cm x 50.8 cm) 47" x 40" x 54" (119.4 cm x 101.6 cm x 137.1 cm) |
| Transit Approved | Yes |
| Wheel Locks | Attendant (Foot Lock) Optional Extension Handle Push to Lock |
| Angle Adjustable Backrest | -30° to 5° |
| Anodized Color Options | N/A |
| Axle Plate | One Arm Drive Standard |
| Back Post Options | Adjustable Stroller Handles Removable Extension |
| Backrest Options | N/A |
| Camber | 0° |
| Caster Options | N/A |
| Center of Gravity Adjustment | N/A |
| Footplate Options | Extension Tubes Heel Loops Leg Strap Neoprene Covers Toe Loops |
| Frame Angle | N/A |
| Frame Inset | N/A |
| Frame Type | Contracture Seat Frame Fixed Heavy Duty Standard Vent/Battery Base Tray Width Adjustable |
| Front Seat-to-Floor Height | 12.5" to 19" (31.8 cm to 48.3 cm) |
| Grade Aid | N/A |
| Hangers | 60° Swing In/Out 70° Heavy Duty Front Mount Lift-Off 70° Swing In/Out Front Mount 70° Swing In/Out 80° Heavy Duty Front Mount Lift-Off 80° Swing In/Out Front Mount 80° Swing In/Out 90° Elevating 90° Heavy Duty Front Mount Lift-Off 90° Swing In/Out Front Mount Articulating Contracture Elevating |
| Hub Lock | 12" (30.5 cm) or 16" (40.6 cm) |
| Lower Leg Length Setting | N/A |
| Military Service Patches | N/A |
| Model Number | EIZ4-2 |
| Power Assist | N/A |
| Rear Seat-to-Floor Height | 12.5" to 19" (31.8 cm to 48.3 cm) |
| Rear Wheel Tire | Full Poly Low Poly Pneumatic with Airless Insert Pneumatic |
| Rear Wheel Type | 12" (30.5 cm) Mag 16" (40.6 cm) Mag 20" (50.8 cm) Mag 22" (55.9 cm) Mag 24" (61 cm) Mag 24" (61 cm) Spoke |
| Seating | Drop Seat Pan JAY Cushion Standard Seat Pan |
| Side Guard Options | N/A |
| Side Guards | Plastic Kids Plastic Regular |
| Special Packages | N/A |
| Suspension | N/A |
| Tilt Range | 40° 55° |
| Tilt Release Options | Backrest Dual Trigger Foot Release |
| Tray Tables | Large Medium Small Small X-Large |
| Argentina | Yes |
| Aruba | Yes |
| Bahamas | Yes |
| Barbados | Yes |
| Bermuda | Yes |
| Bolivia | Yes |
| Bonaire | Yes |
| Brazil | Yes |
| Chile | Yes |
| Colombia | Yes |
| Costa Rica | Yes |
| Curacao | Yes |
| Dominican Republic | Yes |
| Ecuador | Yes |
| El Salvador | Yes |
| Guatemala | Yes |
| Honduras | Yes |
| Jamaica | Yes |
| Mexico | Yes |
| Nicaragua | Yes |
| Panama | Yes |
| Paraguay | Yes |
| Peru | Yes |
| Puerto Rico | No |
| Trinidad | Yes |
| Uruguay | Yes |
Electric Tilt, Attendant Control, Toggle Switch
The electric tilt option gives the user more control over their body's position in space and enhances comfort by assisting with sitting tolerance. It provides more independence to participate in daily activities and to engage more with the world and others. Electric tilt is available for IRIS, IRIS Heavy Duty, and SR45. It allows the caregiver to give the user control of the tilt function. The battery indicator is displayed at the top of the control, so you never have to guess when it's time to charge. The attendant control can be conveniently hung anywhere on the chair and can be mounted vertically or horizontally as needed. The charging port is conveniently located on the toggle switch for easy access.

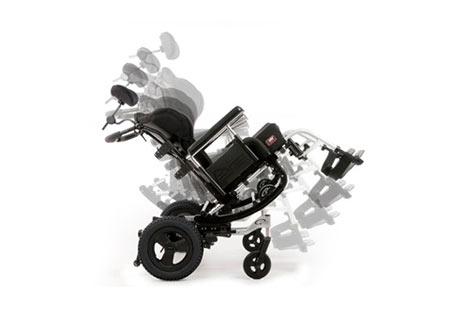

40° or 55° Intelligent Rotation in Space Technology
Intelligent rotation in space technology means that the seat frame rotates around the user’s center of gravity. This results in a smooth tilt motion that is easy to control and allows for the shortest possible wheelbase, which is easy to maneuver. The IRIS manual wheelchair features rotation ranges of 40° or 55° that can be configured to achieve up to 45° or 60° of posterior rotation for superior positioning. The Quickie IRIS now features a new standard weight capacity of 300 lb and a heavy-duty weight capacity of 400 lb.

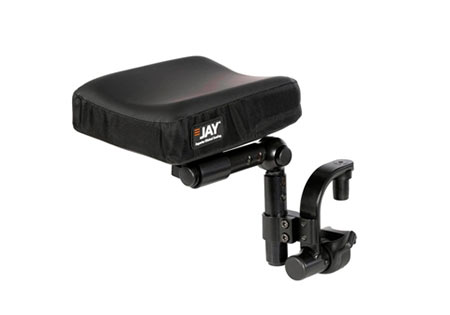

JAY Lower Extremity Support
The new JAY Lower Extremity Support option is fully integrated into the Quickie IRIS hanger. The swing-in/swing-out latch mechanism design makes switching hangers from the lower extremity support an intuitive process. Available in two pad sizes, the technology allows for vertical and horizontal angle adjustment to provide the proper support for our clients' needs.

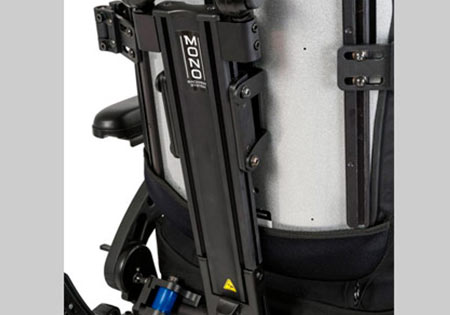

MONO Backrest System® Option
The single-post MONO backrest system offers unlimited seating and positioning capabilities. By mounting the backrest on a single central post, the widths of the backrest and chair can be selected independently, hardware interference is eliminated to allow infinite adjustment of lateral thoracic supports, and the backrest can achieve a 2-inch offset from the midline. The MONO backrest system offers an optional dynamic function, 35° angle adjustment, and folds forward for easy transport.

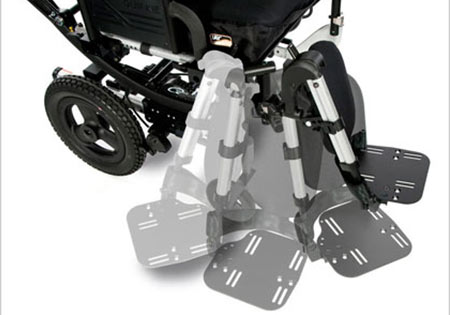

Intuitive Footrest Designs
The new IRIS swing-in/swing-out hanger design features an intuitive bidirectional release lever that follows the movement of your hand. A tapered locking mechanism prevents the hanger from loosening over time. The elevating/articulating footrest includes 2" of height adjustment to better align with the knee joint for natural movement. Audible clicks indicate its position as it elevates. The improved closure mechanism allows for easy switching between swing-in/swing-out hangers and ELR/ALR without additional hardware.
