TS Wheelchair
ZIPPIE's original pediatric tilt-in-space wheelchair. The ZIPPIE® TS™ is the original, premier pediatric tilt-in-space wheelchair. Available with either a folding or rigid frame, built-in growth, and compatible with many seating and positioning solutions, the TS™ has the widest variety of options in the tilt-in-space market.
45° Traditional Tilt Technology

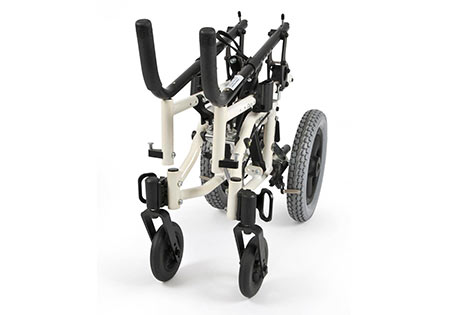

Folding and Rigid Frame Options

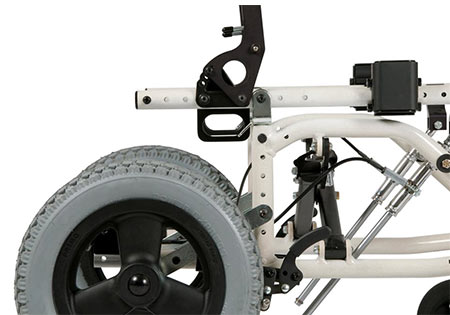

Growth Capabilities
Other Assets
| Back Height | Adjustable: 16" to 22", 19" Fixed: 19", 22", 25" |
| Anti-Tips | Front or Rear |
| Armrests | Adjustable Locking Flip-up Flip-up Length Adjustable Locking Flip-up Single-Post Height Adjustable T-Post |
| Axle | One Arm Drive Quad Quick Release Quick Release |
| Back Upholstery | N/A |
| Caster Wheels | 8" (20.3 cm) Poly 3" (7.6 cm) Micro Lighted 4" (10.2 cm) Micro Lighted 5" (12.7 cm) Low-Profile Poly 5" (12.7 cm) Micro lighted 5" x 1.5" (12.7 cm x 3.8 cm) Semi-Pneu 6" (15.2 cm) Pneumatic 6" (15.2 cm) Poly 6" x 1.5" (15.2 cm x 3.8 cm) Semi-Pneu 8" (20.3 cm) Pneumatic 8" x 1.5" (20.3 cm x 3.8 cm) Semi-Pneu 8" x 2" (20.3 cm x 5.1 cm) Pneumatic 8" x 2" (20.3 cm x 5.1 cm) Pneumatic w/Airless Insert |
| Chair Weight | 29 lbs. (13.2 kg) |
| Footplates | Aluminum Angle Adjustable Aluminum Composite Footboard Kids Angle Adjustable Platform Flip-up |
| Frame Material | Aluminum |
| Frame Style | Rigid or Folding |
| Handrims | Aluminum Anodized Plastic Coated |
| Overall Chair Width | 18.25" to 24.25" (46.5 cm to 61.6 cm) |
| Seat Depths | 13" to 20" (33 cm to 50.8 cm) |
| Seat Widths | 10" to 18" (25.4 cm to 45.7 cm) |
| User Weight Capacity | 165 lbs. (74.8 kg) |
| Accessories | Black Spoke Guard Clear Spoke Guard Seat Pouch Tool Kit Upper Extremity Support Tray (XS, S, M, L) Utility Backpack |
| Arm Pads | Classic Contour Foam |
| Average Shipping Weight | 50 lbs. (22.7 kg) |
| Backrest Type | Fixed Height Adjustable |
| Shipping Dimensions | Folding: 33" x 38" x 13" Rigid: 31" x 24" x 24" |
| Transit Approved | Reference Owner's Manual for Complete Details Transit Approved for Occupant |
| Wheel Locks | 6" (15.2 cm) Extension Handle Option Foot Lock High Mount Pull High Mount Push |
| Angle Adjustable Backrest | -30° to 5° |
| Anodized Color Options | N/A |
| Axle Plate | 12" (30.5 cm) Rear Wheel Axle Plate Long Adjustable One Arm Drive Short Adjustable |
| Back Post Options | Angle Adjustable Swing-Away |
| Backrest Options | Folding Adjustable Rigidizer |
| Camber | N/A |
| Caster Options | Caster Pin Locks |
| Center of Gravity Adjustment | 0" (0 cm) |
| Footplate Options | Extension Tubes (Short, Medium, Long, High Mount) Leg Strap Neoprene Covers Heel Loops Toe Loops |
| Frame Angle | N/A |
| Frame Color Options | Black Opal Black Blue Opal Candy Blue Candy Purple Candy Red Copper Forest Green Fuchsia Glow Matte Black Matte Green Midnight Purple Oak Camouflage Pearl Pink Rootbeer Sparkle Silver Stars & Stripes Mossy Titanium Color Paint Toxic Green Yellow Zebra |
| Frame Inset | N/A |
| Frame Type | Folding Rigid |
| Front Seat-to-Floor Height | 15.5" to 20" (39.4 cm to 50.8 cm) |
| Hangers | 60° Swing In/Out 70° Heavy Duty Front Mount Lift-Off 70° Swing In/Out Front Mount 70° Swing In/Out 80° Heavy Duty Front Mount Lift-Off 80° Swing In/Out Front Mount 80° Swing In/Out 90° Elevating 90° Heavy Duty Front Mount Lift-Off 90° Swing In/Out Front Mount Articulating Elevating |
| Hub Lock | 12" (30.5 cm) or 16" (40.6 cm) |
| Model Number | EIZ1A |
| Rear Seat-to-Floor Height | 14" to 19" (35.6 cm to 48.3 cm) |
| Rear Wheel Tire | Full Poly High Pressure Clincher Low Poly Pneumatic with Airless Insert Pneumatic |
| Rear Wheel Type | 12" (30.5 cm) Mag 16" (40.6 cm) Mag 18" (45.7 cm) Spoke 20" (50.8 cm) Lite Spoke 20" (50.8 cm) Mag 22" (55.9 cm) Lite Spoke 22" (55.9 cm) Mag 24" (61 cm) Lite Spoke 24" (61 cm) Mag |
| Seating | Growing Seat Pan JAY Cushion Solid Seat |
| Side Guard Options | N/A |
| Side Guards | Plastic Low Plastic Standard |
| Special Packages | N/A |
| Tilt Range | 45° |
| Tilt Release Options | Criss Cross Cables Dual Trigger Cable Release Foot Release |
| Head Support Options | Visit JAY Seating & Positioning Page for Optio |
| Positioning Accessories | 1" (2.5 cm) Comfort Fit Positioning Belt 1" (2.5 cm) Dual Pull Side Squeeze 1.5" (3.8 cm) Auto Style Positioning 2" (5.1 cm) Aircraft Style Padded 2" (5.1 cm) Aircraft Style Positioning Belt Padded Positioning Belt Positioning Belt |
| Seat Angle Adjustment | N/A |
| Tilt Capability | Yes |
| Argentina | Yes |
| Aruba | Yes |
| Bahamas | Yes |
| Barbados | Yes |
| Bermuda | Yes |
| Bolivia | Yes |
| Bonaire | Yes |
| Brazil | Yes |
| Chile | Yes |
| Colombia | Yes |
| Costa Rica | Yes |
| Curacao | Yes |
| Dominican Republic | Yes |
| Ecuador | Yes |
| El Salvador | Yes |
| Guatemala | Yes |
| Honduras | Yes |
| Jamaica | Yes |
| Mexico | Yes |
| Nicaragua | Yes |
| Panama | Yes |
| Paraguay | Yes |
| Peru | Yes |
| Puerto Rico | No |
| Trinidad | Yes |
| Uruguay | Yes |
