GS Wheelchair
Growth and versatility that keeps up with busy kids. Named for its built-in growth system, the Zippie® GS™ offers frame and component growth, standard and reverse wheel configurations, and folding and rigid frame options to keep up with children's ever-changing lives!
Growth Capabilities
Folding and Rigid Frame Options
Standard and Reverse Wheel Placements
Dual Seat Rails
Other Assets
| Back Height | Adjustable: 16" to 22" (40.6 cm to 55.9 cm) Fixed: 19", 22", 25" (48.3 cm, 55.9 cm) |
| Anti-Tips | Front or Rear |
| Armrests | Adjustable Locking Flip-up Flip-up Length Adjustable Locking Flip-Up Single-Post Height Adjustable T-Post |
| Axle | One Arm Drive Quad Quick Release Quick Release |
| Back Upholstery | N/A |
| Caster Wheels | 19" to 25" (48.3 cm to 63.5 cm) 3" (7.6 cm) Micro Lighted 4" (10.2 cm) Micro Lighted 5" (12.7 cm) Low-Profile Poly 5" (12.7 cm) Micro lighted 5" x 1.5" (12.7 cm x 3.8 cm) Semi-Pneuma 6" (15.2 cm) Pneumatic 6" (15.2 cm) Poly 6" x 1.5" (15.2 cm x 3.8 cm) Semi-Pneuma 8" (20.3 cm) Pneumatic 8" (20.3 cm) Poly 8" x 1.5" (20.3 cm x 3.8 cm) Semi-Pneuma 8" x 2" (20.3 cm x 5.1 cm) Pneumatic 8" x 2" (20.3 cm x 5.1 cm )Pneumatic w/ Airless Insert |
| Chair Weight | Folding: 29 lbs. (13.2 kg) Rigid: 25 lbs. (11.3 kg) |
| Footplates | Aluminum Angle Adjustable Aluminum Composite Footboard Kids Angle Adjustable Platform Flip-up |
| Frame Material | Aluminum |
| Frame Style | Rigid or Folding |
| Handrims | Aluminum Anodized Plastic Coated |
| Overall Chair Width | 19" to 27" (48.3 cm to 68.6 cm) |
| Seat Depths | 10" to 20" (25.4 cm to 50.8 cm) |
| Seat Widths | 10" to 18" (25.4 cm to 45.7 cm) |
| User Weight Capacity | 165 lbs. (74.8 kg) |
| Accessories | Black Spoke Guard Clear Spoke Guard Seat Pouch Tool Kit Upper Extremity Support Tray (XS, S, M, L) Utility Backpack |
| Arm Pads | Classic Contour |
| Average Shipping Weight | 50 lbs. (22.7 kg) |
| Backrest Type | Solid Back |
| Shipping Dimensions | Folding: 33" x 38" x 13" (83.8 cm x 96.5 cm x 33 cm) Rigid: 31" x 24" x 24" (78.7 cm x 61 cm x 61 cm) |
| Transit Approved | Reference Owner's Manual for Complete Details Transit Approved for Occupant |
| Wheel Locks | 6" (15.2 cm) Extension Handle Option Foot Lock High Mount Pull High Mount Push |
| Angle Adjustable Backrest | -30° to 5° |
| Anodized Color Options | N/A |
| Axle Plate | One Arm Drive Standard |
| Back Post Options | Fixed Height Folding Height Adjustable |
| Backrest Options | N/A |
| Camber | N/A |
| Caster Options | Caster Pin Locks |
| Center of Gravity Adjustment | 3" (7.6 cm) |
| Footplate Options | Extension Tubes (Short, Medium, Long, High Mount) Heel Loops Leg Strap Neoprene Covers Toe Loops |
| Frame Angle | N/A |
| Frame Color Options | Candy Blue |
| Frame Inset | N/A |
| Frame Type | Folding Standard Reverse Configuration Rigid Standard |
| Front Seat-to-Floor Height | 14" to 20" (35.6 cm to 50.8 cm) |
| Hangers | 60° Swing In/Out 70° Heavy Duty Front Mount Lift-Off 70° Swing In/Out Front Mount 70° Swing In/Out 80° Heavy Duty Front Mount Lift-Off 80° Swing In/Out Front Mount 80° Swing In/Out 90° Elevating 90° Heavy Duty Front Mount Lift-Off 90° Swing Away Front Mount Articulating Elevating |
| Hub Lock | 12" (30.5 cm) or 16" (40.6 cm) |
| Model Number | EIZGS |
| Rear Seat-to-Floor Height | 12.5" to 20" (31.8 cm to 50.8 cm) |
| Rear Wheel Tire | Full Poly High Pressure Clincher Low Poly Pneumatic with Airless Insert Pneumatic |
| Rear Wheel Type | 18" (45.7 cm) Spoke 20" (50.8 cm) Lite Spoke 20" (50.8 cm) Mag 22" (55.9 cm) Lite Spoke 22" (55.9 cm) Mag 24" (61 cm) Lite Spoke 24" (61 cm) Mag |
| Seating | Growing Seat Pan JAY Cushion Solid Seat |
| Side Guard Options | N/A |
| Side Guards | Plastic Low Plastic Standard |
| Special Packages | N/A |
| Tilt Range | N/A |
| Tilt Release Options | N/A |
| Head Support Options | Visit JAY Seating & Positioning Page for Optio |
| Positioning Accessories | 1" (2.5 cm) Comfort Fit Positioning Belt 1" (2.5 cm) Dual Pull Side Squeeze Padded 1.5" (3.8 cm) Auto Style Positioning Belt 2" (5.1 cm) Aircraft Style Padded Positioning 2" (5.1 cm) Aircraft Style Positioning Belt |
| Seat Angle Adjustment | N/A |
| Tilt Capability | N/A |
| Argentina | Yes |
| Aruba | Yes |
| Bahamas | Yes |
| Barbados | Yes |
| Bermuda | Yes |
| Bolivia | Yes |
| Bonaire | Yes |
| Brazil | Yes |
| Chile | Yes |
| Colombia | Yes |
| Costa Rica | Yes |
| Curacao | Yes |
| Dominican Republic | Yes |
| Ecuador | Yes |
| El Salvador | Yes |
| Guatemala | Yes |
| Honduras | Yes |
| Jamaica | Yes |
| Mexico | Yes |
| Nicaragua | Yes |
| Panama | Yes |
| Paraguay | Yes |
| Peru | Yes |
| Puerto Rico | No |
| Trinidad | Yes |
| Uruguay | Yes |
| USA | No |
Growth Capabilities
The GS was designed to accommodate the changes your child may experience throughout the life of the wheelchair. Both the rigid and folding frames and the versatile growing seat pan allow for up to 2" of width growth and up to 4" of depth growth! Adjustable components including armrests and legrests maintain proper positioning during development.

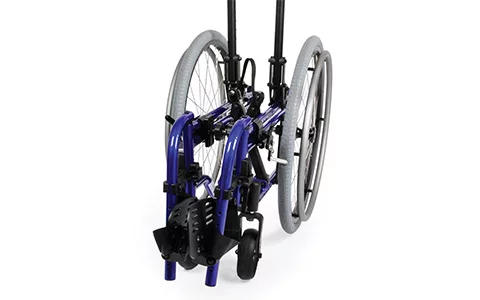

Folding and Rigid Frame Options
No two families are identical. To accommodate differing priorities and lifestyles, the GS kids wheelchair is available with a folding frame or a rigid frame. The folding frame is a good choice for families needing to store the wheelchair in a vehicle or in tight spaces at home. With fewer moving parts, the rigid frame option requires the least amount of propulsion effort and offers the lowest overall weight.

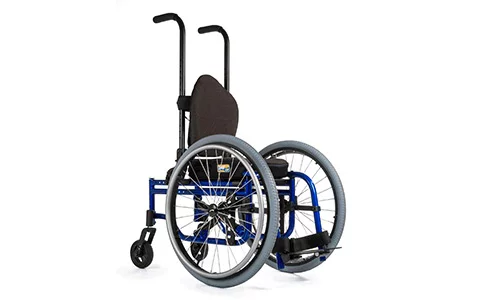

Standard and Reverse Wheel Placements
Self-propulsion allows children to explore and interact with their environment. The GS provides the best access to the wheels during different stages of development. If your child has a shorter arm reach or would benefit from being able to see the wheels, placing the push wheel at the front of the frame (reverse) can encourage use and self-propulsion. As they grow, the wheels may then be moved to the rear of the frame (standard) for the best wheel access.

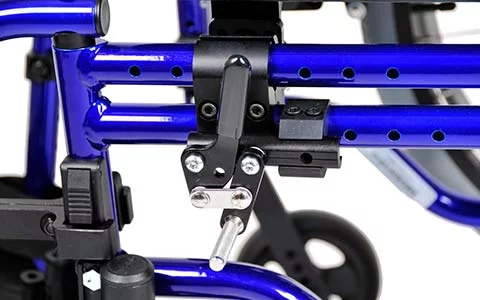

Dual Seat Rails
When it comes to pediatric wheelchairs, there is not much real estate for attaching options and accessories! The GS's dual seat rails allow the seat to be mounted separately from the armrests, wheel locks, and other options to avoid parts interference.
