5R Wheelchair
Highly adjustable to elevate your mobility. The Quickie® 5R is designed to deliver superior rigid wheelchair performance day after day. As you and your environment evolve, or as you refine your riding capabilities, the 5R’s frame and components adjust to elevate your mobility.
Open Frame Design with Hydro-Formed Caster Link

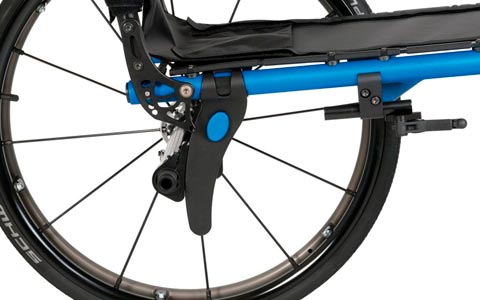

Swept-Back, Highly Adjustable Axle Plate Design
Access to Premium Options

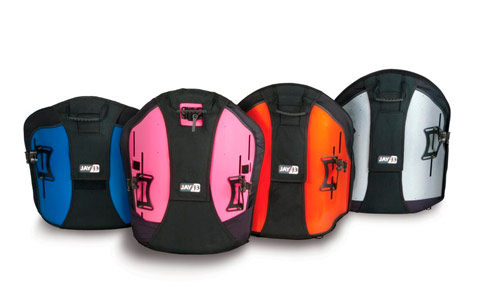

JAY Seating Options
Other Assets
| Back Height | 10" - 20" (25.4 cm - 50.8 cm) |
| Anti-Tips | Rear Anti-tips |
| Armrests | Padded Swing-Away Single Post Height Adjustable Low Single Post Height Adjustable Standard |
| Axle | Quad Quick Release Quick Release Steel |
| Back Upholstery | JAY J3 Back Standard Tension Adjustable 3DX Vented Tension Adjustable Ballistic Nylon Vented |
| Caster Wheels | 3" (7.6 cm) Micro 4" (10.2 cm) Low Profile Polyurethane 4" (10.2 cm) Micro Lighted 4" x 1" (10.2 cm x 2.5 cm) Aluminum Poly 4" x 1.25" (10.2 cm x 3.2 cm) Semi Pneum 4" x 1.5" (10.2 cm x 3.8 cm) Aluminum So 5" (12.7 cm) Micro lighted 5" (12.7 cm) Soft Roll (Grey) 5" x 1" (12.7 cm x 2.5 cm) Aluminum Poly 5" x 1.5" (12.7 cm x 3.8 cm) Aluminum So 5" x 1.5" (12.7 cm x 3.8 cm) Semi-Pneuma 6" (15.2 cm) Polyurethane 6" x 1.5" (15.2 cm x 3.8 cm) Aluminum So 6" x 1.5" (15.2 cm x 3.8 cm) Semi Pneuma |
| Footplates | Aluminum Platform Aluminum Tubular w/Flat Cover Aluminum Tubular Angle Adjustable Flip Back High Mount Platform |
| Frame Material | Aluminum |
| Frame Style | Rigid |
| Handrims | Aluminum Anodized Natural Fit - No Thumb Grip Natural Fit - Standard Grip Natural Fit - Super Grip Natural Fit LT - No Thumb Grip Natural Fit LT - Standard Grip Natural Fit LT - Super Grip Plastic Coated Projection - 8 Oblique Q-Grip Neoprene Coated Spinergy Flex Rim The Surge - Oval w/ Gription Strip The Surge LT - Oval w/ Gription Strip |
| Seat Depths | 12" - 20" (30.5 cm - 50.8 cm) |
| Seat Widths | 12" - 20" (30.5 cm - 50.8 cm) |
| User Weight Capacity | 265 lbs. (120.2 kg) |
| Accessories | Black Spoke Guard Bolt-in Push Handles Clear Spoke Guard Crutch Holder Gel Cover Swing-Away Armrest Quickie Backpack Seat Pouch Tool Kit Zippie Backpack |
| Arm Pads | Desk Length - Classic Desk Length - Contour Full Length - Classic Full Length - Contour |
| Average Shipping Weight | 50 lbs. (22.7 kg) |
| Backrest Type | Folding Lock-Down Angle Adjustable Non-Folding |
| Positioning Belts | 1.5" (3.8 cm) Auto Buckle 2" (5.1 cm) Aircraft Buckle 2" (5.1 cm) Padded Aircraft Buckle |
| Shipping Dimensions | 31" x 24" x 24" (78.7cm x 61cm x 61cm) |
| Transit Approved | Yes |
| Wheel Locks | 6" (15.2 cm) Extension Handle Pair Compact Ergo Scissor High Mount Pull High Mount Push |
| Angle Adjustable Backrest | Fore (-) 17° to Aft (+) 8° |
| Anodized Color Options | Black Blue Gold Lime Green Purple Red Ti Grey |
| Axle Plate | Amputee Standard Long - 6" (15.2 cm) vertical adjust Suspension Xtender |
| Back Post Options | Fold Down Push Handles Integral Push Handles |
| Backrest Options | N/A |
| Camber | 0°, 3°, 6° |
| Caster Options | Carbotecture Caster Forks Frog Legs Multi-Position Single Sided |
| Center of Gravity Adjustment | -1.5" - 4" (3.8 cm - 10.2 cm) |
| Footplate Options | Adaptive Platform -2",4",6" Gel Hanger Cover Leg Strap Neoprene Impact Guards Position Plates Wear Pads |
| Frame Angle | 75°, 80°, 85° |
| Frame Color Options | Black |
| Frame Inset | 0", 1"or 2"(0 cm, 2.5 cm or 5.1 cm) |

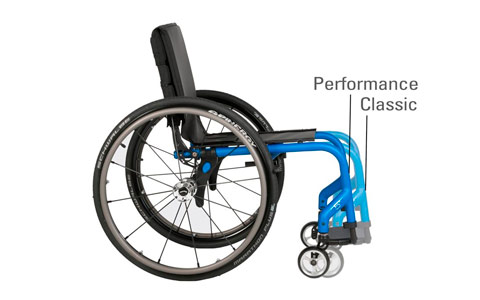

| Frame Type | Classic Depth Adjustable Back Performance XTR Suspension |
| Front Seat-to-Floor Height | 16" - 21" (40.6 cm - 53.3 cm) |
| Grade Aid | Grade Aid |
| Hangers | N/A |
| Hub Lock | N/A |
| Lower Leg Length Setting | N/A |
| Model Number | EIR10 |
| Power Assist | Quickie Xten Pneumatic Wheels 4xTorque Multiplier |
| Rear Seat-to-Floor Height | 13" - 20" (33 cm - 50.8 cm) |
| Rear Wheel Tire | Full Poly High-Pressure Clincher Knobby V-TRAK Mountain Tire Pneumatic with Airless Insert Pneumatic Schwalbe® Marathon Plus Evolution SHOX Performance Poly |
| Rear Wheel Type | 20" (50.8 cm) Lite Spoke Wheel 20" (50.8 cm) Mag Wheel 5 Spoke 22" (55.9 cm) Lite Spoke Wheel 22" (55.9 cm) Mag Wheel 5 Spoke 22" (55.9 cm) Spinergy LX Black 22" (55.9 cm) Spinergy SPOX Black 22" (55.9 cm) Ultra Lightweight Spoke Wheel 24" (61 cm) Lite Spoke Wheel 24" (61 cm) Mag Wheel 5 Spoke 24" (61 cm) Mountain 24" (61 cm) Spinergy LX Black 24" (61 cm) Spinergy SPOX Black 24" (61 cm) Ultra Lightweight Spoke Wheel 24"(61cm)Topolino Carbon Core Wheel Red Spoke 24"(61cm)Topolino Carbon Core Wheel Yellow 25" (63.5 cm) Lite Spoke Wheel 25" (63.5 cm) Spinergy SPOX Black 25"(63.5cm)Topolino Carbon Core Wheel Red 25"(63.5cm)Topolino Carbon Core Wheel Yellow 26" (66 cm) Lite Spoke Wheel 26" (66 cm) Spinergy LX Black 26" (66 cm) Spinergy SPOX Black |
| Seating | 2" (5.1 cm) Cushion JAY Cushions Standard Seat Sling |
| Side Guard Options | Frame color match Aluminum Aluminum with Fender |
| Side Guards | Aluminum with Fender Aluminum Carbon Fiber Plastic - Low Plastic - Standard |
| Special Packages | N/A |

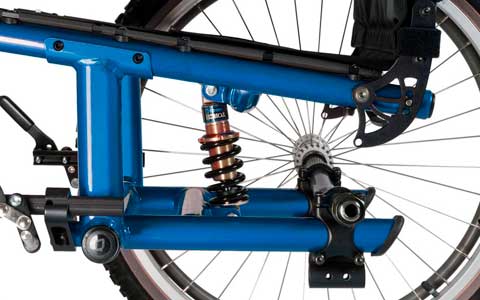

| Suspension | Frog Legs Caster Suspension Suspension Axle Plate XTR Monoshock Rear Suspension |
| Tilt Range | N/A |
| Tilt Release Options | N/A |
| Tray Tables | Large Medium Small X-Small |
| Wheelchair Weight | Standard Configuration: 21.5 lbs. (9.8 kg) Transport without Wheel Locks: 11.65 lbs.(5.3 kg) Transport: 12.9 lbs. (5.9 kg) |
